Ref.: 552050

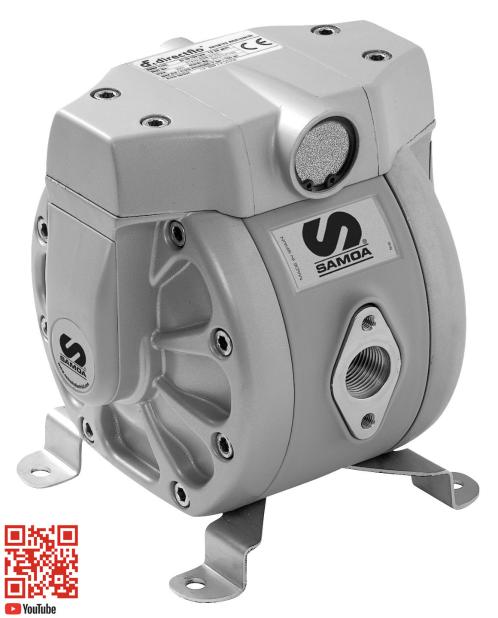

1/2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, DF50, DIRECTFLO SERIES, STAINLESS STEEL-HYTREL-HYTREL
Ref.: 552050
1/2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, DF50, DIRECTFLO SERIES, STAINLESS STEEL-HYTREL-HYTREL
This is a component for a Kit. Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids.
Ideal for standard applications with small to medium flow rates.
Very robust metal pumps designed for the toughest applications.
This model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C).Diaphragms type & material / Material y tipo de membranas
Video: SAMOA Directflo pumps - Simple maintenance
Video: SAMOA DF Pump - No turbulences or bubbles on the surface
Technical data
Documentation
More information
| Fluid ports / Location | BSP/NPT |
| Target product type | Directflo Series Diaphragm Pumps |
| Pump size | 1/2" |
| Pressure ratio | 1:1 |
| Maximum free flow delivery | 50 l/min (14 gal/min) |
| Air pressure operating range | 1,5-8 bar (20-120 psi) |
| Solids in suspension maximum size | 3 mm (0,12 ") |
| Maximum dry suction head | 6 m (20 ft) |
| Maximum wet suction head | 8 m (26 ft) |
| Delivery per cycle | 0,2 l (0,05 gal) |
| Fluid inlet | 1/2" BSP (F) - 3/8" BSP DF50T |
| Fluid outlet | 1/2" BSP (F) |
| Air inlet | 3/8" NPSM (F) |
| Air exhaust port | 3/8" NPSM (adapter required) |
| Sound level | 80 dB |
| Certification | ATEX |
| Fluid path material | Stainless steel (AISI 316) |
| Diaphragms type & material | Hytrel |
| Valve seats material | Stainless steel |
| Valve balls material | Hytrel |
| Shaft material | Stainless steel |
| Seals material | EPDM |
| Other wetted materials | Stainless steel |
| Wetted materials | Stainless steel (AISI 316), Hytrel, Stainless steel, PTFE, EPDM |
| Air motor material | Aluminium |
| Weight | 3,5 kg (7,72 lb) |
| Compatible fluids | Chemicals, Solvent, Paint, Ink, Varnish |
