Ref.: 684515

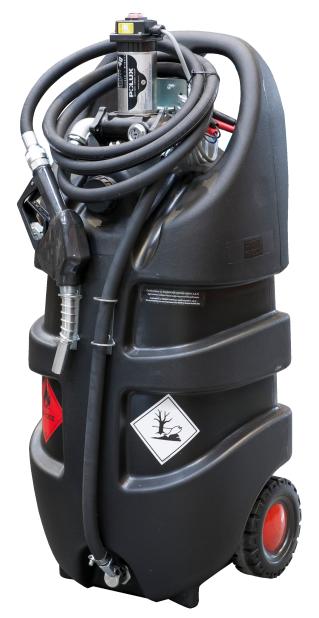

12 V POLUX SERIES MOBILE ELECTRIC PUMP PACKAGE FOR DIESEL, 110 L

Ref.: 684515

12 V POLUX SERIES MOBILE ELECTRIC PUMP PACKAGE FOR DIESEL, 110 L

Trolleys specially designed for the transport and supply of diesel. With a capacity of 110 l, they have a pump, a 3 m hose and a nozzle for a comfortable transfer. Made of high-density polyethylene and ergonomically designed to be held by slings. High wheels for all types of terrain with cap and safety valve. Instruction book: 868825.

About this product:

REQUEST A QUOTE BECOME A DISTRIBUTOR

File 684515

Videos are not displayed because cookies are not accepted
Technical data
Compatible fluids Diesel
Type Mobile Pump Packages
Pump type Electric Pumps
Components 684530, 688300
Documentation

General

Instruction manuals

868825 Instruction book: Manual diesel pump, mobile and portable packages (PDF)
2.3 mb

Catalogs

Spare parts

Category documents 04

Category documents 05

Category documents 06

More information

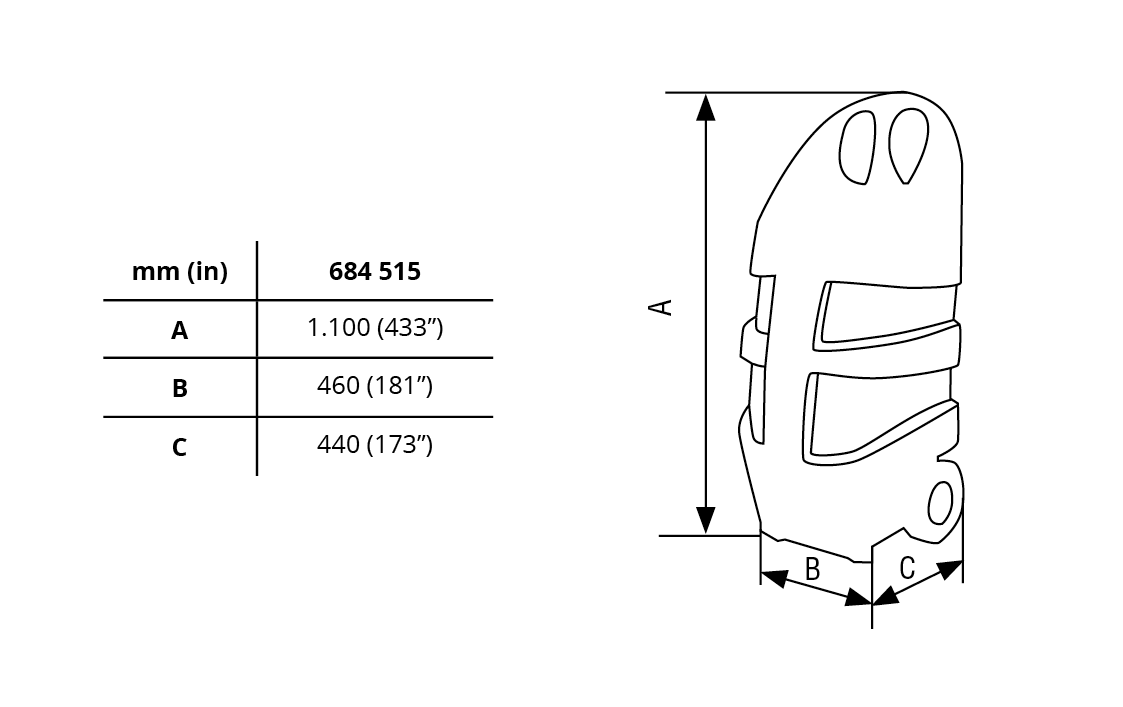

Imagen

Kit components

Code Product
684530 12 V DC ROTARY VANE PUMPS FOR DIESEL, POLUX SERIES, 40 L/MIN
688300 ALUMINIUM AUTOMATIC NOZZLE, 60 L/MIN, 1" BSP (F) INLET

Models

Code Description Components
684515 Pump on mobile package, 110 l 684530, 688300
684517 Pump package with nozzle, 440 l 684530, 688300
684516 Pump package with nozzle, 220 l 684530, 688300
684951 Pump package with nozzle and suction package, 40 l/min 684530, 689024, 361000, 689030
684514 Pump package with nozzle, meter and suction package, 40 l/min 684530, 689024, 361000, 366976, 689030
684512 Pump package with nozzle, 40 l/min 684530, 689024, 361000
684465 Pump package with automatic nozzle, meter and suction package, 60 l/min 684451, 689021, 688300, 366976, 689030
684461 Pump package with automatic nozzle, 60 l/min 684451, 689021, 688300
