SAMOA Industrial
Ref.: 500110
COMPACT REEL FOR AIR, RM-38 SERIES, 12 M X 8 MM, 3/8"
Ref.: 500110
COMPACT REEL FOR AIR, RM-38 SERIES, 12 M X 8 MM, 3/8"
Compact enclosed reels for compressed air, manufactured in steel. All reels include pivoting wall bracket for an easy and convenient installation. Reels are supplied with PVC hose and they have a maximum working pressure of 15 bar (285 psi). Model with 12 m x 8 mm hose, 3/8". Instruction book: 850809.
Technical data
Documentation
More information
| Compatible fluids | Air |
| Hose in diameter | 5/16" |
| Hose length | 12 m (32,8 ft) |
| Fluid Inlet | 3/8" BSP (M) |
| Fluid outlet | 1/4" BSP (M) |
| Working Pressure | 20 bar (290 psi) |
| Installation options | Floor, Wall, Ceiling |
| Bare reel part number | N/A |
| Weight | 6,8 kg (15 lb) |
Ref.
Lubrication

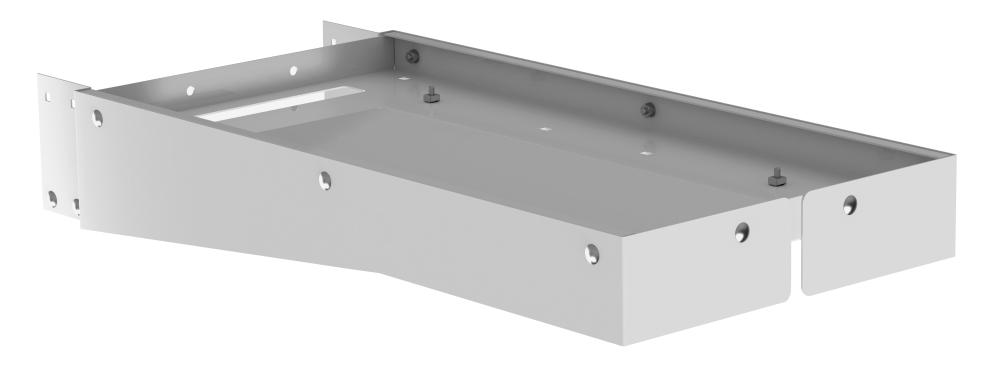

360167
Ref.
Lubrication

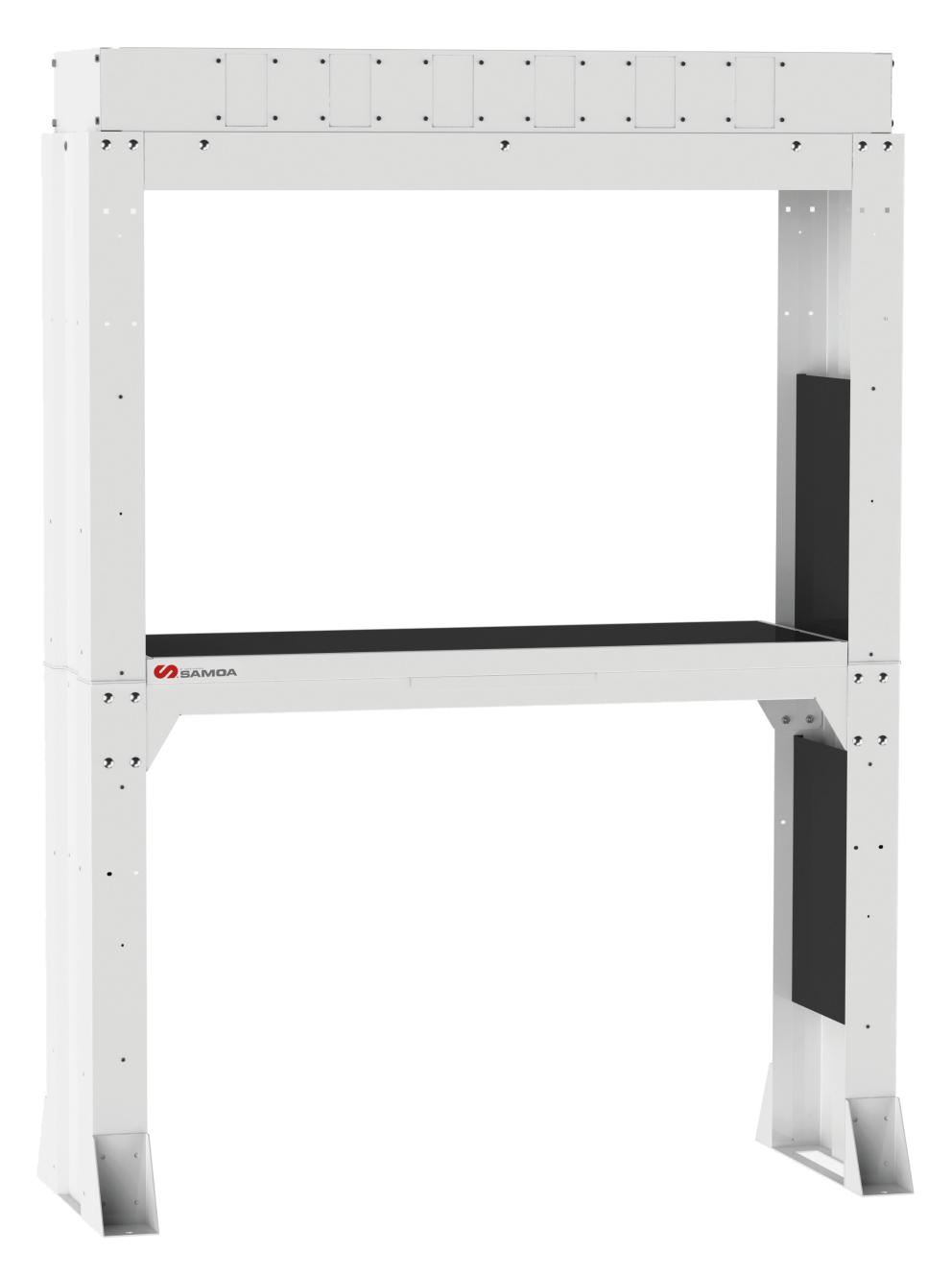

360165.001
Ref.
Lubrication

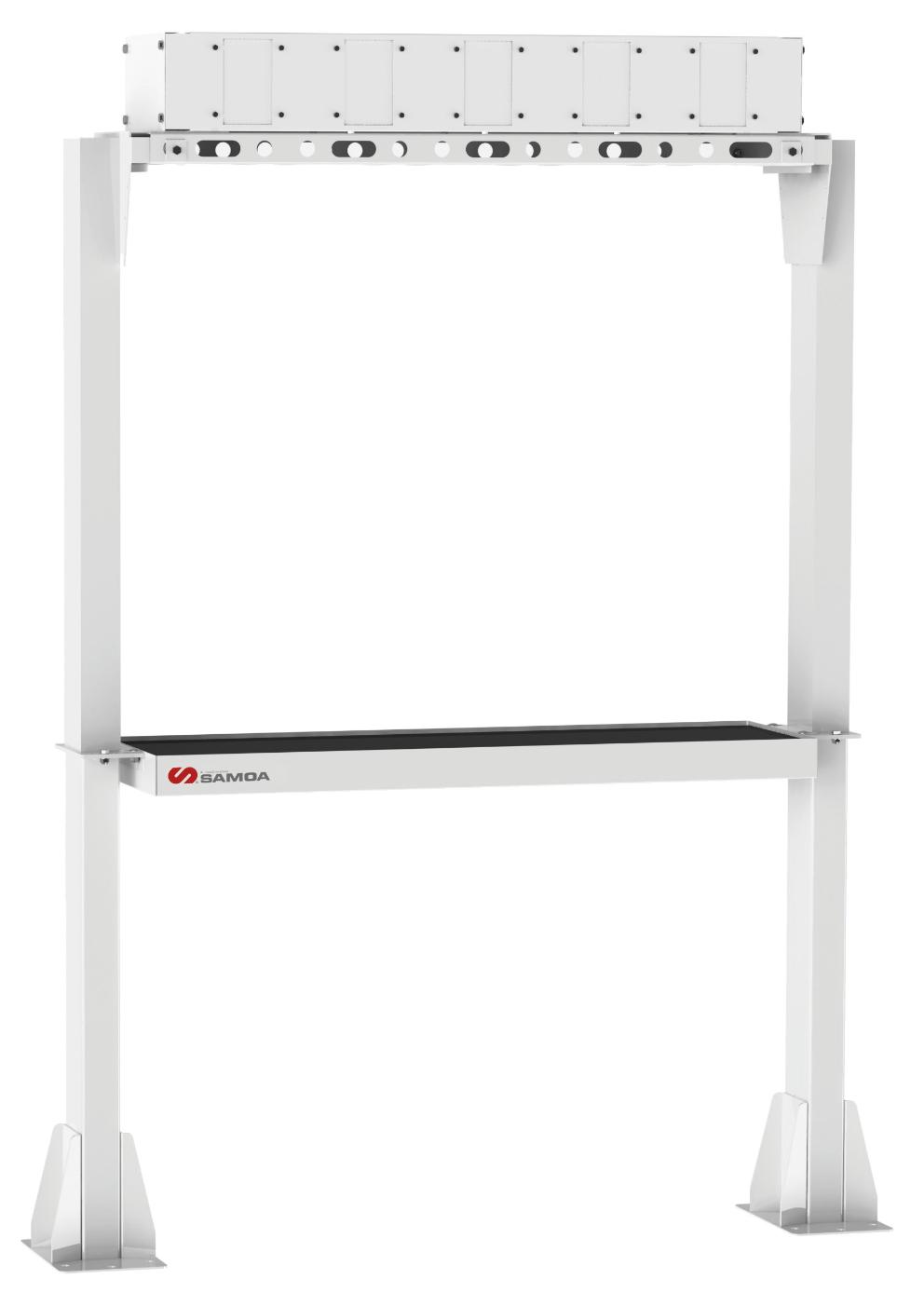

360163.001
Ref.
Lubrication

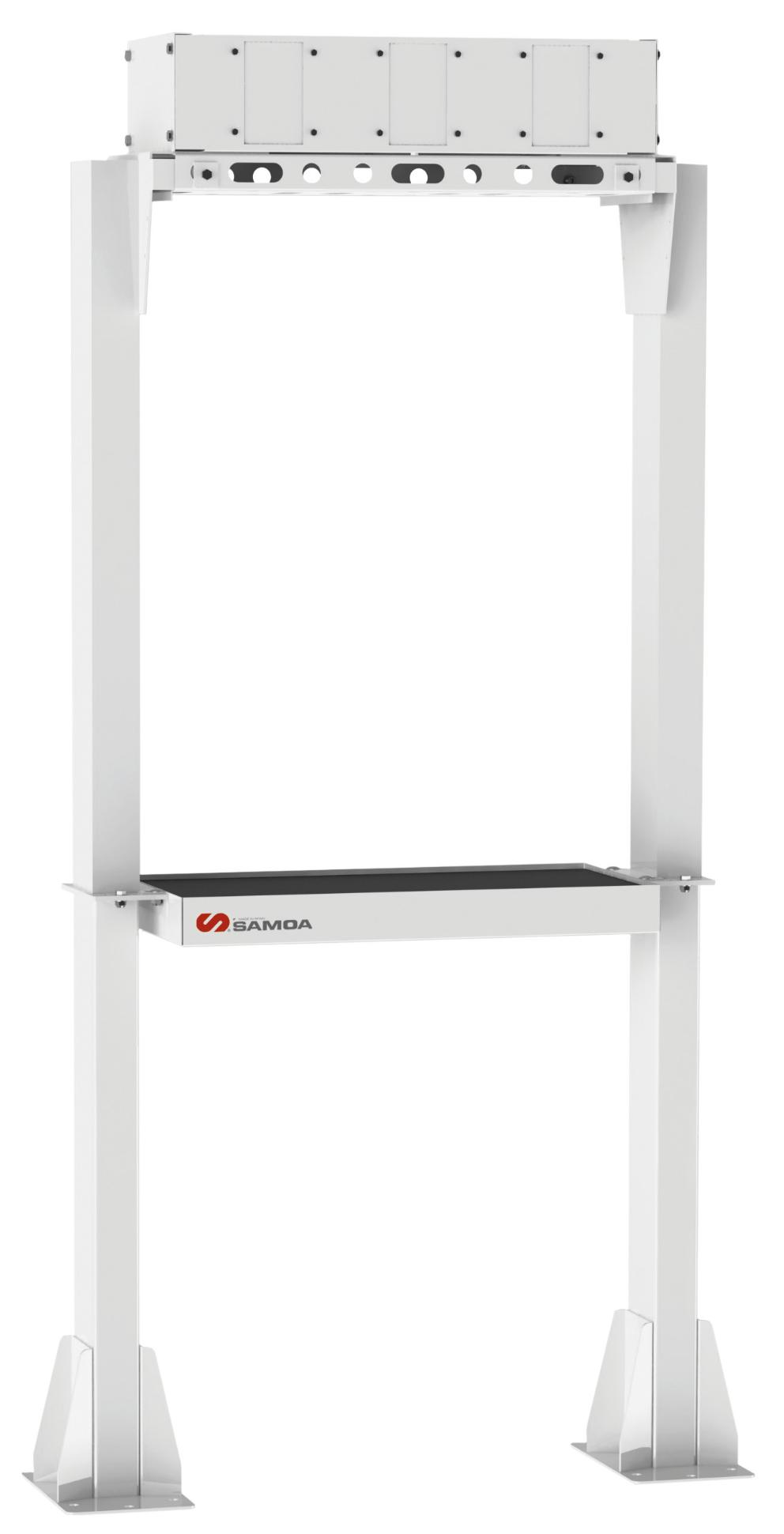

360162.001
Ref.
Lubrication

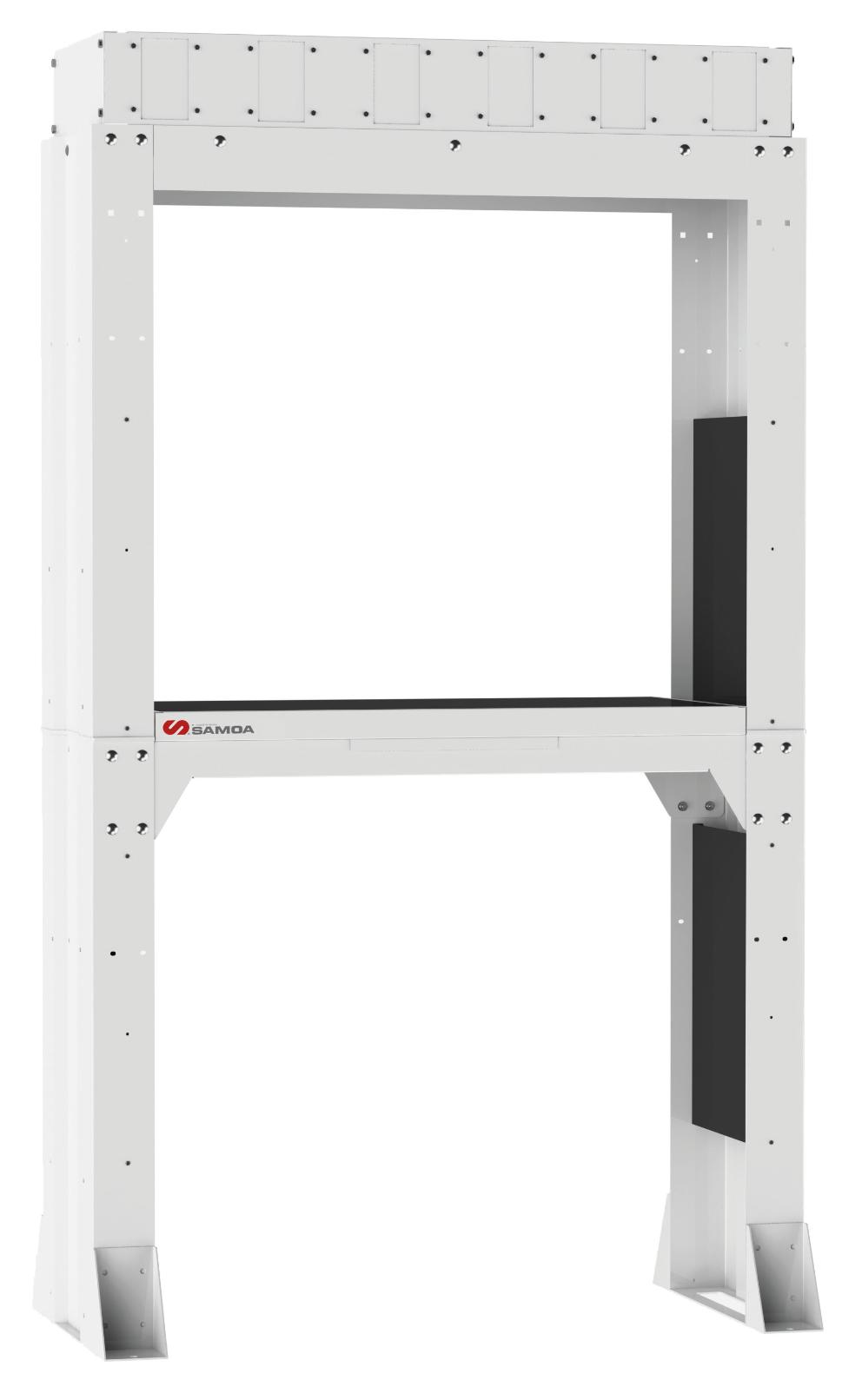

360160.001
Ref.
Lubrication

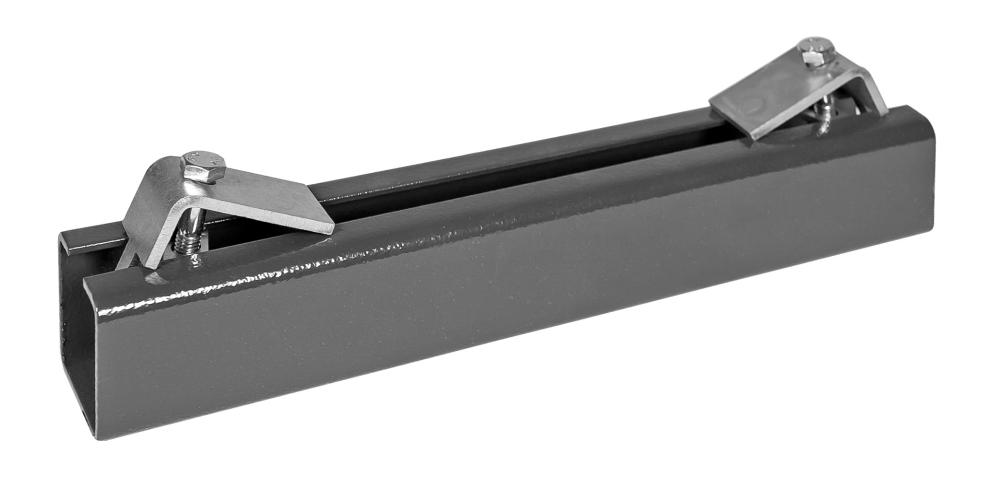

360118
