SAMOA Industrial
Ref.: 559502

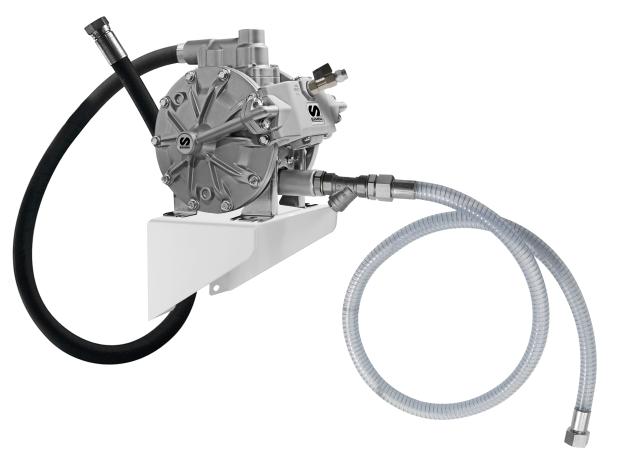

DP200 1:1 - FLUID TRANSFER PNEUMATIC PUMP, 205 L/MIN, WALL MOUNTED KIT
Ref.: 559502
DP200 1:1 - FLUID TRANSFER PNEUMATIC PUMP, 205 L/MIN, WALL MOUNTED KIT
DP200 ratio 1: 1 high flow diaphragm pneumatic pump kit. Metal
construction. Equipped with Suction and discharge hoses and wall-mounted
wall bracket for pump. To be used for emptying drums 205 l originals,
1.000 l standard containers (IBC). Transfer of mineral or synthetic oils
from various function: hydraulics, engine lubricants, gears or
differentials, transmission fluid; solutions of coolant-antifreeze
(glycol), windshield wiper or demineralized water, etc.
Technical data
Documentation
More information
| Compatible fluids | Oil, Glycol, Windscreen washer, Water |
| Type | Pump Kits |
| Pump type | Pneumatic Diaphragm Pumps (AODDP) |
| Components | 555030, 950318, 360142, 855491, 689015, 855492, 247715, 251438, 255338, 362924, 689019, 945555 |
Kit components
| Code | Product |
|---|---|
| 247715 | AIR HOSE, CONNECTION THREAD 3/8" BSPT (M) x 1/2" BSPT (M), 1,5 M |
| 251438 | INDUSTRIAL AIR QUICK COUPLER, Ø 3/8", FEMALE TO 3/8" BSP |
| 255338 | AIR NIPPLE, Ø 3/8", ISO 6150 B15, MALE TO 3/8" BSP |
| 360142 | WALL BRACKET FOR DP200 DIAPHRAGM PUMP |
| 2995050 | 1” AIR BLEEDING VALVE FOR DF250 PUMP |
| 555030 | 1" PNEUMATIC DOUBLE DIAPHRAGM PUMP, DP200, DIRECTFLO SERIES, ALUMINIUM-NBR-ACETAL |
| 689015 | BRASS FOOT VALVE WITH FILTER FOR SUCTION TUBE, 1" BSP (F) |
| 689019 | BRASS "Y" STRAINER FILTER, 1" BSP (F) |
| 855492 | WASTE OIL SUCTION HOSE, TRANSPARENT, 1,8 M, 1" |
| 945555 | HYDRAULIC ADAPTOR, 1" BSP (MM) |
| 950318 | AIR LINE SHUTOFF VALVE, 3/8" BSP (FF) |
| 855491 | TRANSPARENT SUCTION HOSE, Ø 1", 3 M, 1" BSP (F) |
Models
| Code | Description | Components |
|---|---|---|
| 559502 | Pump on 205 l drum, wall mounted kit | 555030, 950318, 360142, 855491, 689015, 855492, 247715, 251438, 255338, 362924, 689019, 945555 |
| 559503 | Pump with dispensing valve, 200 l/min, wall mounted kit | 555030, 950318, 360142, 855491, 689015, 361000, 247715, 855492, 251438, 255338, 362924, 689019, 945555 |
