Ref.: 508890

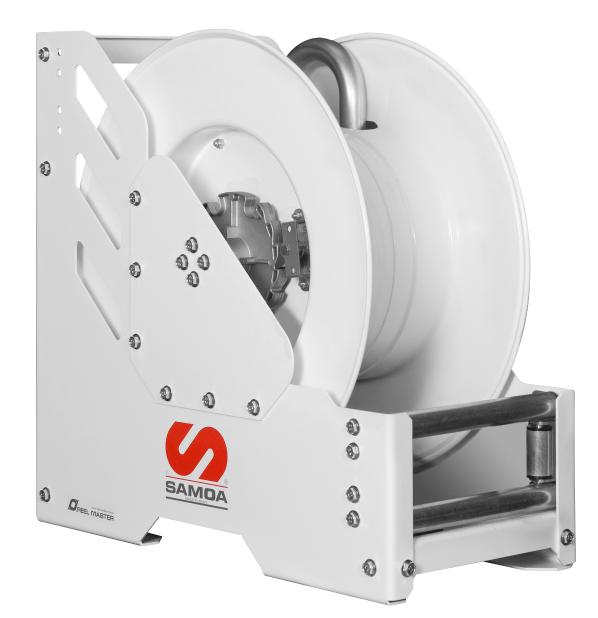

HEAVY DUTY LARGE DELIVERY HOSE REEL, RM-150 SERIES, WITH NO HOSE, 11/2", WATER / DIESEL
Ref.: 508890
HEAVY DUTY LARGE DELIVERY HOSE REEL, RM-150 SERIES, WITH NO HOSE, 11/2", WATER / DIESEL
Very tough construction large delivery reels, able to stand regular use and abuse in Intensive Duty applications. Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose. Full port shaft and swivel for no restrictions. Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life. Large effective radial latching area for easier operation. Hose guide arm can be placed in two different positions to accommodate any method of mounting. Narrow footprint allows accommodating more reels on the same surface. Model with no hose. Instruction book: 850829.
Technical data
Documentation
More information
| Compatible fluids | Water, Diesel |
| Hose in diameter | 1-1/2" |
| Hose length | 15 m (49,21 ft) |
| Fluid Inlet | 1 1/2" BSP (F) |
| Fluid outlet | 1 1/2" BSP (F) |
| Working Pressure | 20 bar (290,08 psi) |
| Installation options | Floor, Tank |
| Bare reel part number | N/A |
| Weight | 68 kg (149,9 lb) |
Models
| Code | Compatible fluids | Hose in diameter | Hose length | Working Pressure |
|---|---|---|---|---|
| 508890 | Water, Diesel | 1-1/2" | 15 m (49,21 ft) | 20 bar (290,08 psi) |
| 508810 | Water, Diesel | 1 1/2" | 15 m (49,21 ft) | 20 bar (290,08 psi) |
