Ref.: 100995

LEVER ACTION GREASE PUMP WITH VARIABLE STROKE, 15HD SERIES, 500 CC, 100900 PUMP KIT

Ref.: 100995

LEVER ACTION GREASE PUMP WITH VARIABLE STROKE, 15HD SERIES, 500 CC, 100900 PUMP KIT

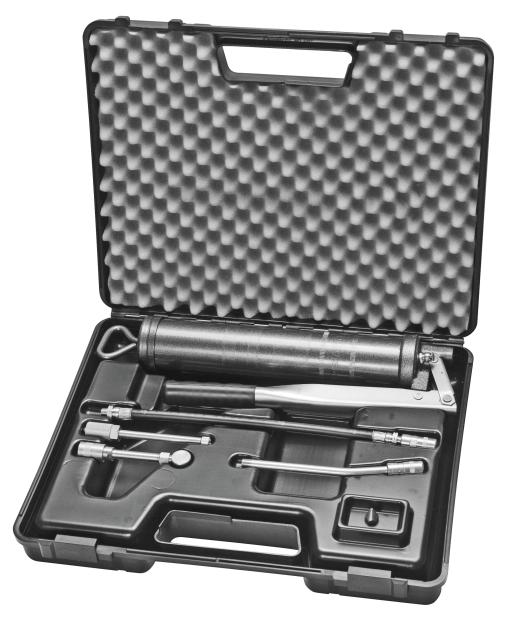

Professional grease pump kit, 15HD series (100900 model) with case and accessories. Includes manual lever pump for professional use. Cast iron pump head with variable stroke mechanism. Air bleeder valve, filling nozzle and lever with handle. Push plunger suitable for suction, cartridge, bulk or dispenser filling. 500 cc steel grease tank. Delivery pressure up to: 700 bar. Grease outlet connection: 1/8” NPT. Accessories included: Rigid and flexible grease fitting with hydraulic nozzle. Quick coupling for nozzle connection. Racord with flat nozzle. Briefcase made of high resistance thermoplastic.

About this product:

REQUEST A QUOTE BECOME A DISTRIBUTOR

File 100995

Videos are not displayed because cookies are not accepted
Technical data
Compatible fluids Grease
Type Pump Kits
Pump type Hand-held Equipment
Components 100900, 710214, 141020, 100995.000
Documentation
More information

Kit components

Code Product
100900 LEVER ACTION GREASE PUMP WITH VARIABLE STROKE, 15HD SERIES, 500 CC, RIGID OUTLET
141020 GREASE OUTLET HOSE WITH GREASE CONNECTOR, DOUBLE STEEL BRAID, 300 MM
710214 GREASE ANGLED STEM - 1/8” NPT (MM) WITH FOUR-JAW CONNECTOR

Models

Code Description Components
100995 Pump kit 100900, 710214, 141020, 100995.000
560313 Pump package with nozzle, 440 l 560212, 569005
560312 Pump package with nozzle, 220 l 560212, 569005
560311 Pump on mobile package, 110 l 560212, 361001.370
560310 Stationary pump package with nozzle and foot valve, 32 l/min 560212, 361001.370, 930507, 560903
