Ref.: 537130
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 12:1, STUB
Ref.: 537130
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 12:1, STUB
PM60 series air operated piston pumps. Double acting air operated
moderate pressure and high delivery for very large installation with
simultaneous operation outlets or when low air pressure would limit pump
performances. Built in port for optional pressure relief valve (PN 609
007). Flange mounted pump. Maximum air consumption with 5 bar (72 psi)
air inlet pressure and 60 cpm. Maximum noise level measured at 1 m
(3.3') from the pump, 7 bar (102 psi) air pressure and free delivery.
Instruction book: 853805.
Technical data
Documentation
More information
| Fluids | Oil |
| Compatible fluids | Oil, Transmission fluid |
| Pump mounting | Universal stub pump |
| Pressure ratio | 12:1 |
| Air pressure operating range | 1,5-12 bar (21,75-174 psi) |
| Air consumption | 1150 NL/min (41 scfm) |
| Maximum outlet pressure | 144 bar (2040 psi) |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Delivery per cycle | 20 l (5,3 gal) |
| Cycles per minute (aprox.) | 60 cycles |
| Delivery | 20 l/min (5,3 gal/min) |
| Maximum free flow delivery | 65 l/min (17,2 gal/min) |
| Air inlet | 1/2" BSP (F) |
| Fluid inlet | 1 1/2" BSP (F) |
| Fluid inlet type | Ball check |
| Fluid outlet | 3/4" BSP (F) |
| Wetted materials | Cast iron, Hard chromed steel, Steel, Polyurethane, NBR |
| Pump tube material | Carbon steel |
| Sound level | 80 dB |
| Tube height | 200 mm (7,9") |
| Total height | 716 mm (28,2") |
| Weight | 19 kg (42 lb) |
Ref.
Lubrication

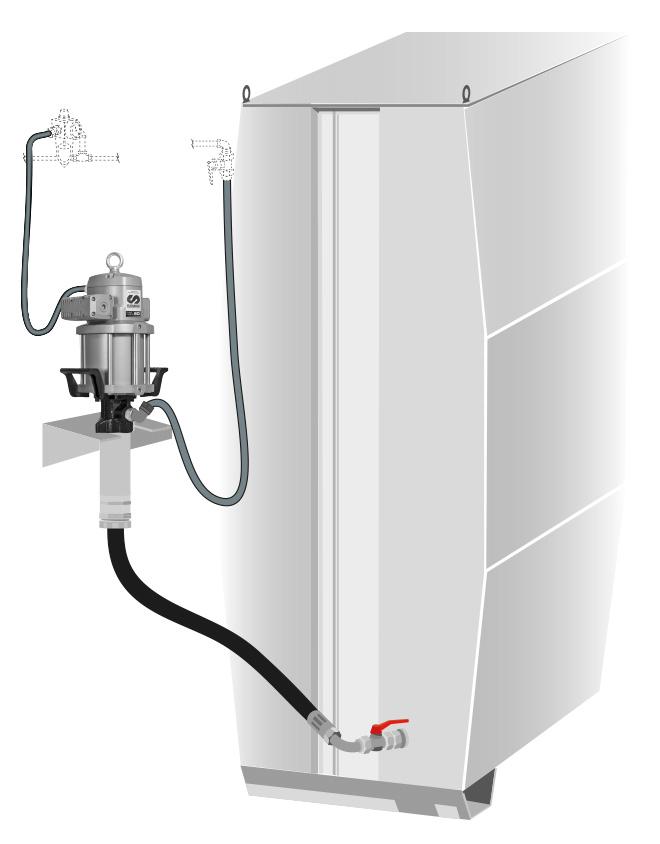

539130
Ref.
Lubrication

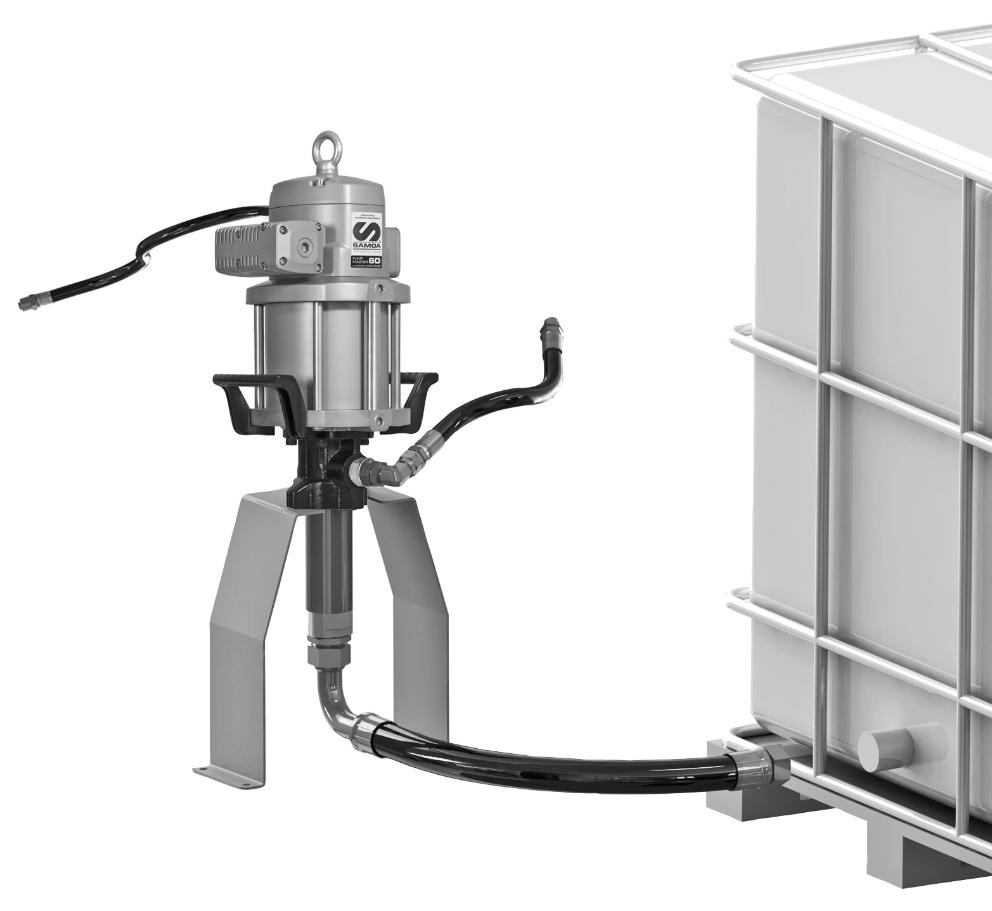

539131
