SAMOA Industrial
Ref.: 428200

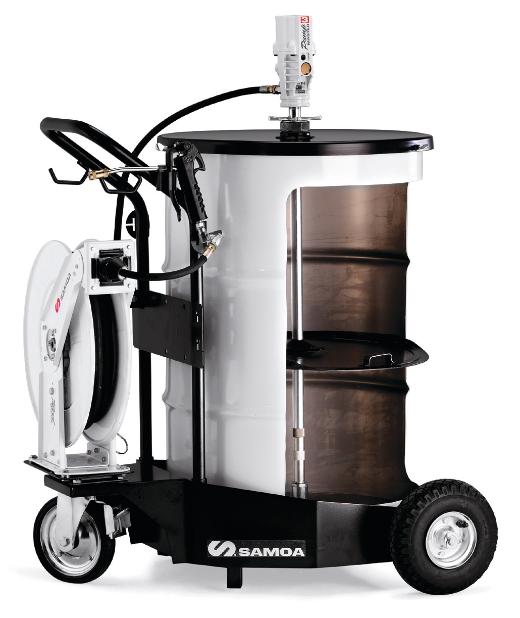

PUMPMASTER 3 - 55:1 RATIO GREASE PNEUMATIC PUMP, 185 KG DRUM MOBILE PACKAGE WITH HOSE REEL
Ref.: 428200
PUMPMASTER 3 - 55:1 RATIO GREASE PNEUMATIC PUMP, 185 KG DRUM MOBILE PACKAGE WITH HOSE REEL
Very high pressure pneumatic pumps for forced greasing with medium
grease delivery flow. Indicated for mobile or stationary greasing
equipment. Designed for mounting on a drum with direct coupling using
the appropriate accessories. Maintenance-free pneumatic driven
reciprocating motor. Double acting pump piston. Applications: High
pressure forced greasing with greases up to NLGI-2. In the automotive,
railway, naval, industrial, construction, agricultural machinery
sectors, etc. Instruction book: 842830.
Technical data
Documentation
More information
| Compatible fluids | Grease |
| Type | Mobile Pump Packages |
| Pump type | Pneumatic Piston Pumps |
| Components | 409200, 418006, 417004, 501300, 412190, 413080, 432814, 360113 |
Kit components
| Code | Product |
|---|---|
| 360113 | HOSE REEL BRACKET FOR TROLLEY 432814 |
| 409200 | PNEUMATIC PISTON GREASE PUMP, PUMPMASTER 3, PM3 - 55:1, 185 KG (400 LB) DRUMS |
| 412190 | GREASE HOSE, 1,5 M x 1/4" |
| 413080 | CONTROL VALVE, PG-77/Z SERIES, 1 KG/MIN, GREASE, RIGID OUTLET, Z-SWIVEL |
| 417004 | STANDARD DUTY FOLLOWER PLATE, 185 KG DRUM, 550 - 590 MM |
| 418006 | STANDARD DUTY DRUM COVER, 185 KG DRUM, 565 - 610 MM |
| 432814 | HEAVY DUTY DRUM TROLLEY, 185 KG DRUMS |
| 501300 | DOUBLE PEDESTAL DOUBLE ARM HOSE REEL, RM-12 SERIES, 10 M, 1/4", GREASE |
Models
| Code | Description | Components |
|---|---|---|
| 428200 | Pump on 185 kg drum mobile package with hose reel | 409200, 418006, 417004, 501300, 412190, 413080, 432814, 360113 |
| 425150 | Pump on 50 kg drum mobile package | 407200, 418004, 413080, 431000, 412103, 418004 |
| 482500 | Pump on 50 kg drum mobile package, shielded package | 407200, 480050, 412103, 413080 |
| 482200 | Pump on 12,5 to 20 kg pails mobile package, shielded package | 404100, 413080, 480021 |
| 428262 | Pump on 185 kg drum stationary package | 409200, 418006, 417004, 412104, 413080, 360125 |
| 428243 | Pump on 185 kg drum mobile package | 409200, 418006, 417004, 412104, 413080, 432000 |
| 425150.002 | Pump on 50 kg drum mobile package with follower plate | 407200, 418016, 417002, 412103, 413080, 431000 |
| 424172 | Pump on 20 kg pails portable package | 404100, 418002, 413080, 741602, 412102 |
| 424170 | Pump on 12,5 to 18 kg pails portable package | 404100, 418013, 413080, 741602, 412102 |
| 424152 | Pump on 20 kg pails mobile package | 404100, 418002, 413080, 430000, 741602, 412102 |
| 424150 | Pump on 12,5 to 18 kg pails mobile package | 404100, 418013, 413080, 430000, 741602, 412102 |
