STAINLESS STEEEL PNEUMATIC PISTON PUMP WITH SUCTION TUBE, PUMPMASTER 4,PM4 - 3:1, 205 L (55 GAL) DRUMS
STAINLESS STEEEL PNEUMATIC PISTON PUMP WITH SUCTION TUBE, PUMPMASTER 4,PM4 - 3:1, 205 L (55 GAL) DRUMS
PM2 series air operated piston pumps. Medium pressure stainless steel pump for the transfer and supply of corrosive industrial fluids from drums or tanks and through hoses or piping circuits with multiple simultaneous outlets. Designed for mounting on a drum or tank, for direct connection or wall mounting using the appropriate fluid suction accessories. It incorporates a 2 ”(M) adapter. Pneumatic driven reciprocating motor with arrangement divorced from the pump body. Double acting pump piston. Instruction book: 833805.
| Fluids | Other fluids |
| Target product type | Double Ball Piston Pumps |
| Model | PM4 |
| Application | Automotive Repair & Maintenance, Industrial Lubrication |
| Pressure ratio | 3:1 |
| Delivery | 25 l/min (6,6 gal/min) |
| Delivery per cycle | 25 l (6,6 gal) |
| Cycles per minute (aprox.) | 100 ciclos |
| Maximum free flow delivery | 40 l/min (10,6 gal/min) |
| Air pressure operating range | 1,5-10 bar (21,75-145 psi) |
| Air consumption | 410 NL/min (14,5 scfm) |
| Maximum outlet pressure | 30 bar (435 psi) |
| Air motor effective diameter | 60 mm (2,5 ") |
| Air motor stroke | 75 mm (3 ") |
| Air inlet | 1/4" NPSM (F) |
| Fluid Inlet | 1" BSP (F) |
| Fluid inlet type | Ball check |
| Fluid outlet | 3/4" NPSM (F) |
| Wetted materials | Stainless steel, Chrome, Viton, PTFE |
| Pump tube material | Stainless steel |
| Pump Mounting | 205 l (55 gal) drum bung mounted |

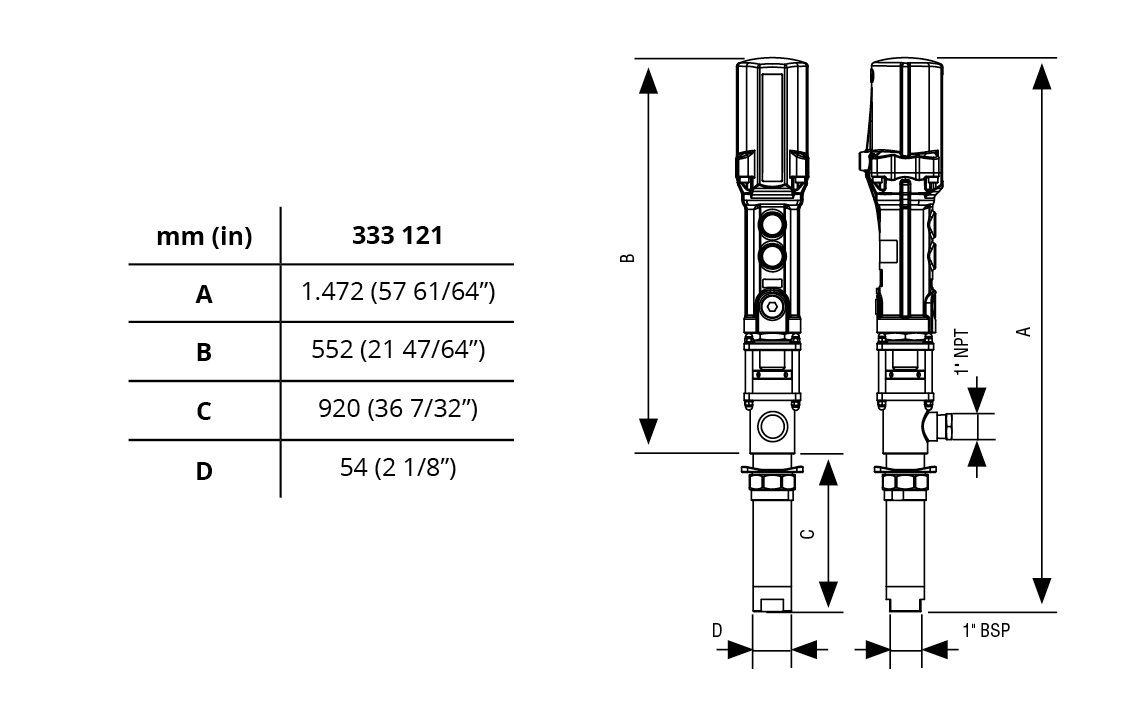

| Tube height | 920 mm (36,2 ") |
| Total height | 1472 mm (57,9 ") |
| Sound level | 93 dB |
| Weight | 10 kg (22 lb) |
