STAINLESS STEEL HOSE REEL, RM-12SS SERIES, 20 M, 1/2"
Ref.: 503120
STAINLESS STEEL HOSE REEL, RM-12SS SERIES, 20 M, 1/2"

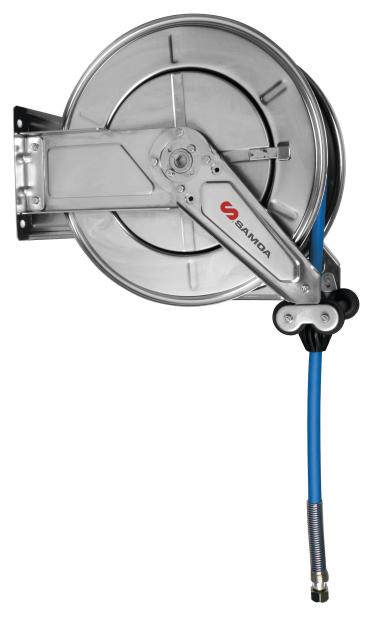

Multi-purpose hose reels made of stainless steel (AISI 304) that allows its use in corrosive environments, bad weather and in the food industry. With a double-arm support structure, the arms are adjustable to achieve optimal operation in any mounting position: wall, ceiling or floor. FEATURES: - Large hose capacity up to 20 m (Ø 1/2”). - For use with air and water at low or high pressure. - All hoses are provided with crimped terminals. - They include a 0.8 m connection hose. Instruction book: 850810.
Technical data
Documentation
More information
| Compatible fluids | Air, Water |
| Hose in diameter | 1/2" |
| Hose length | 20 m (65,62 ft) |
| Fluid Inlet | 1/2" BSP (M) |
| Fluid outlet | 1/2" BSP (M) |
| Working Pressure | 10 bar (145 psi) |
| Installation options | Floor, Wall, Ceiling |
| Bare reel part number | N/A |
| Weight | 23 kg (51 lb) |
Models
| Code | Compatible fluids | Hose in diameter | Hose length | Working Pressure |
|---|---|---|---|---|
| 503120 | Air, Water | 1/2" | 20 m (65,62 ft) | 10 bar (145 psi) |
| 503400 | Air, Water | 3/8" | 20 m (65,62 ft) | 250 bar (3626 psi) |
