SAMOA Industrial

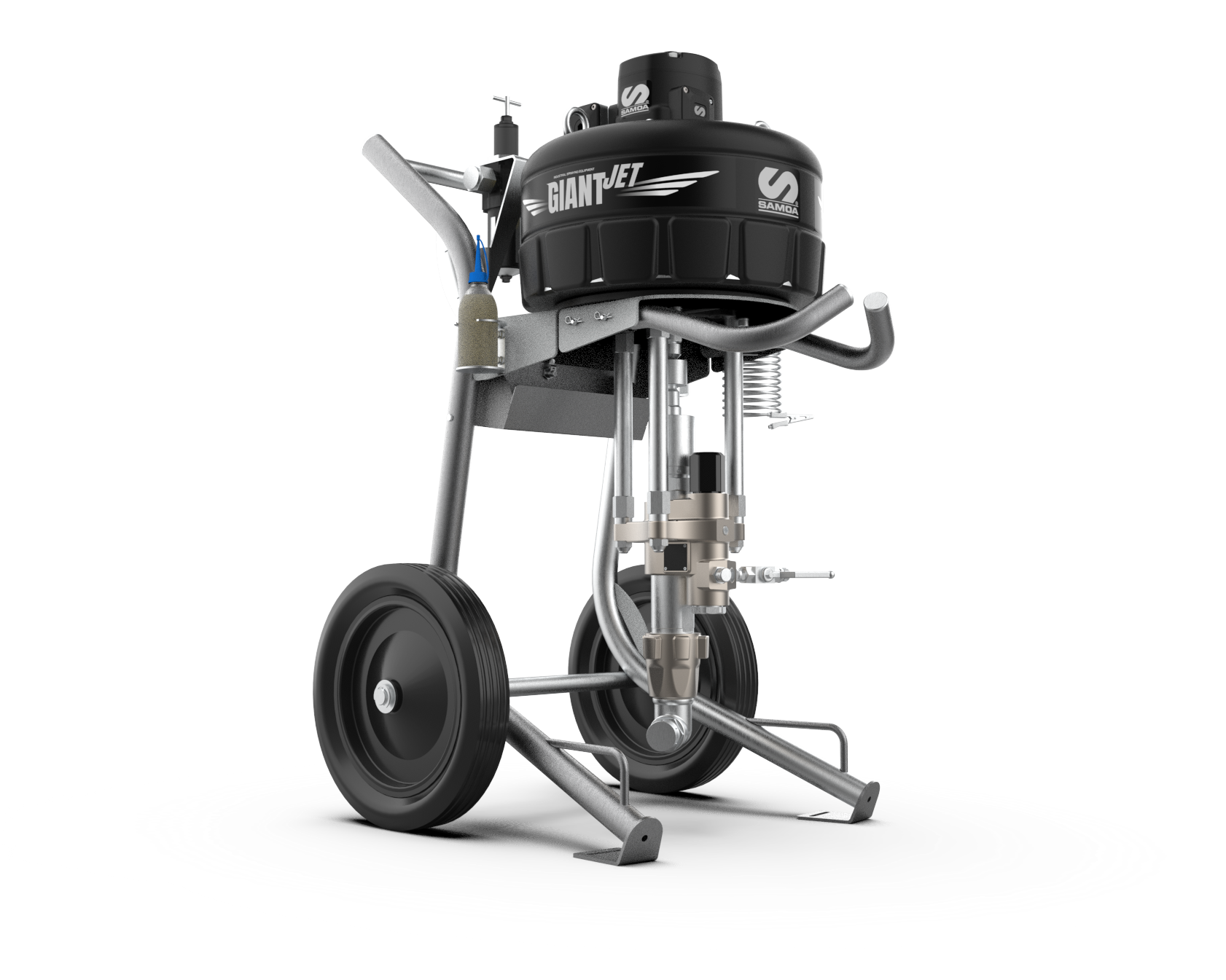

Airless Spray Package: Giant-Jet
Spray
Without Limits
Patented
Design
Reliable
Frost-Control System
Robust
and durable
Proven air motor technology

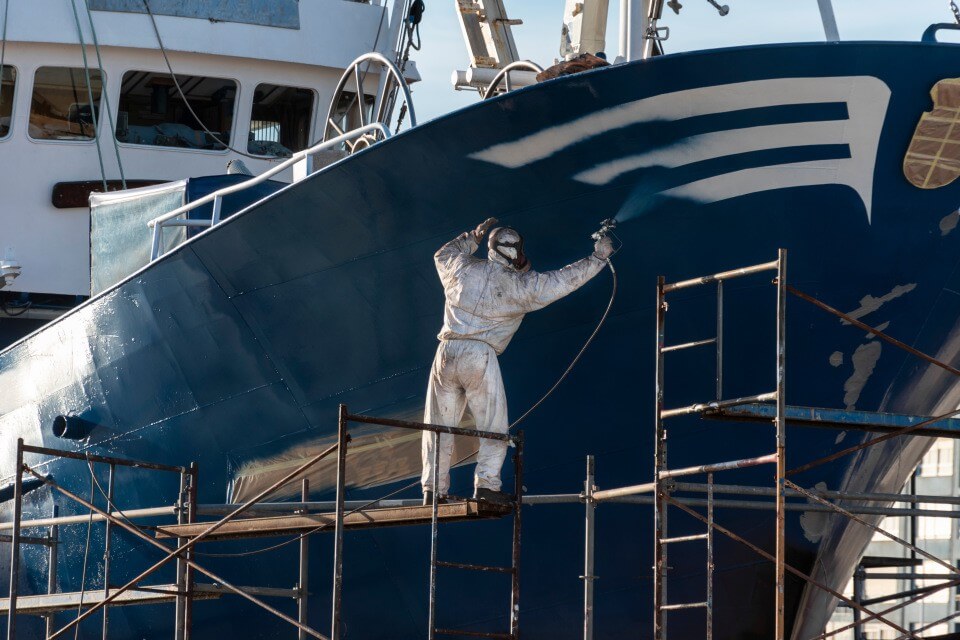

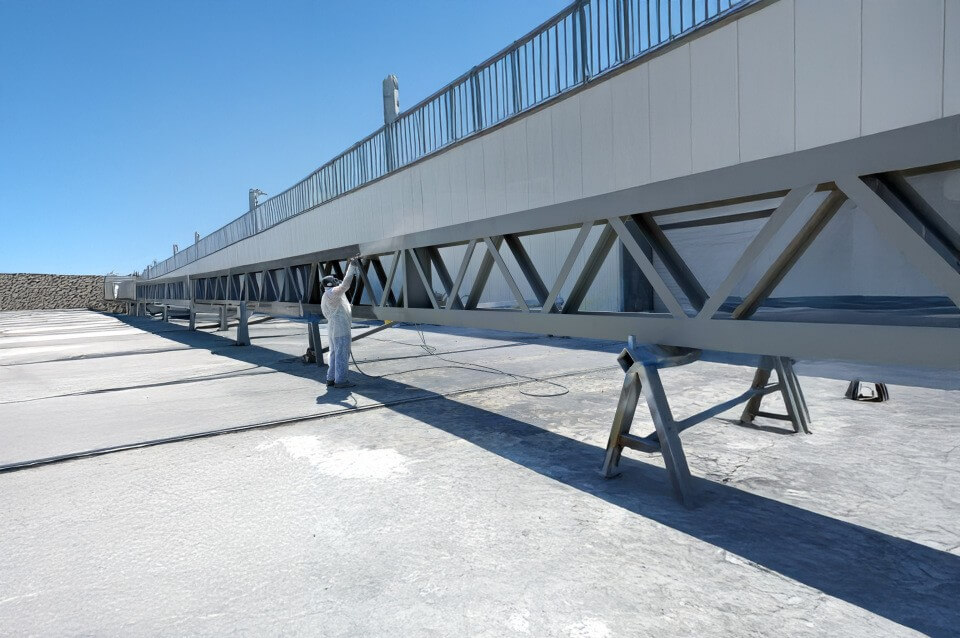

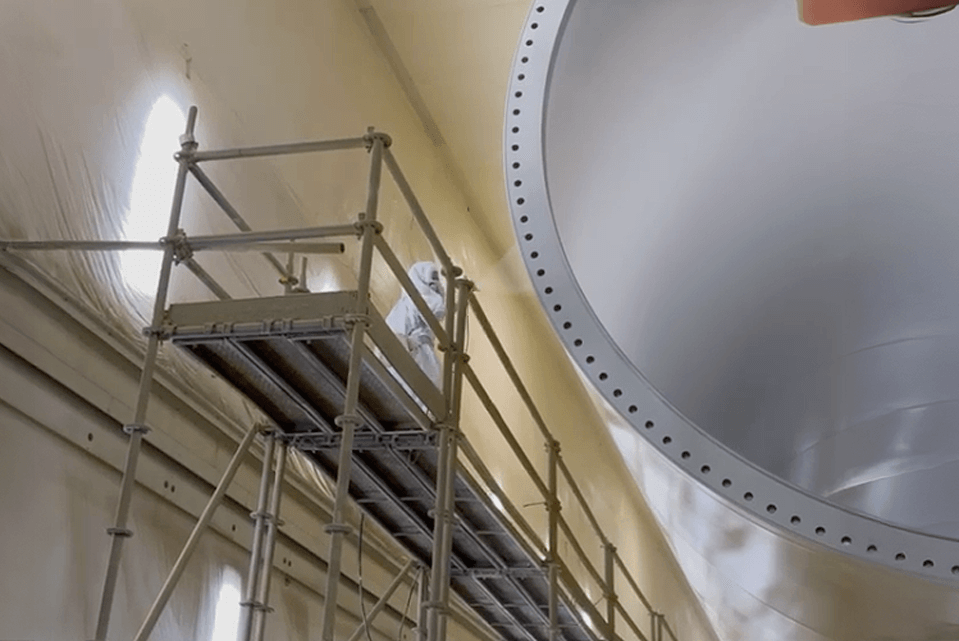

APPLICATIONS

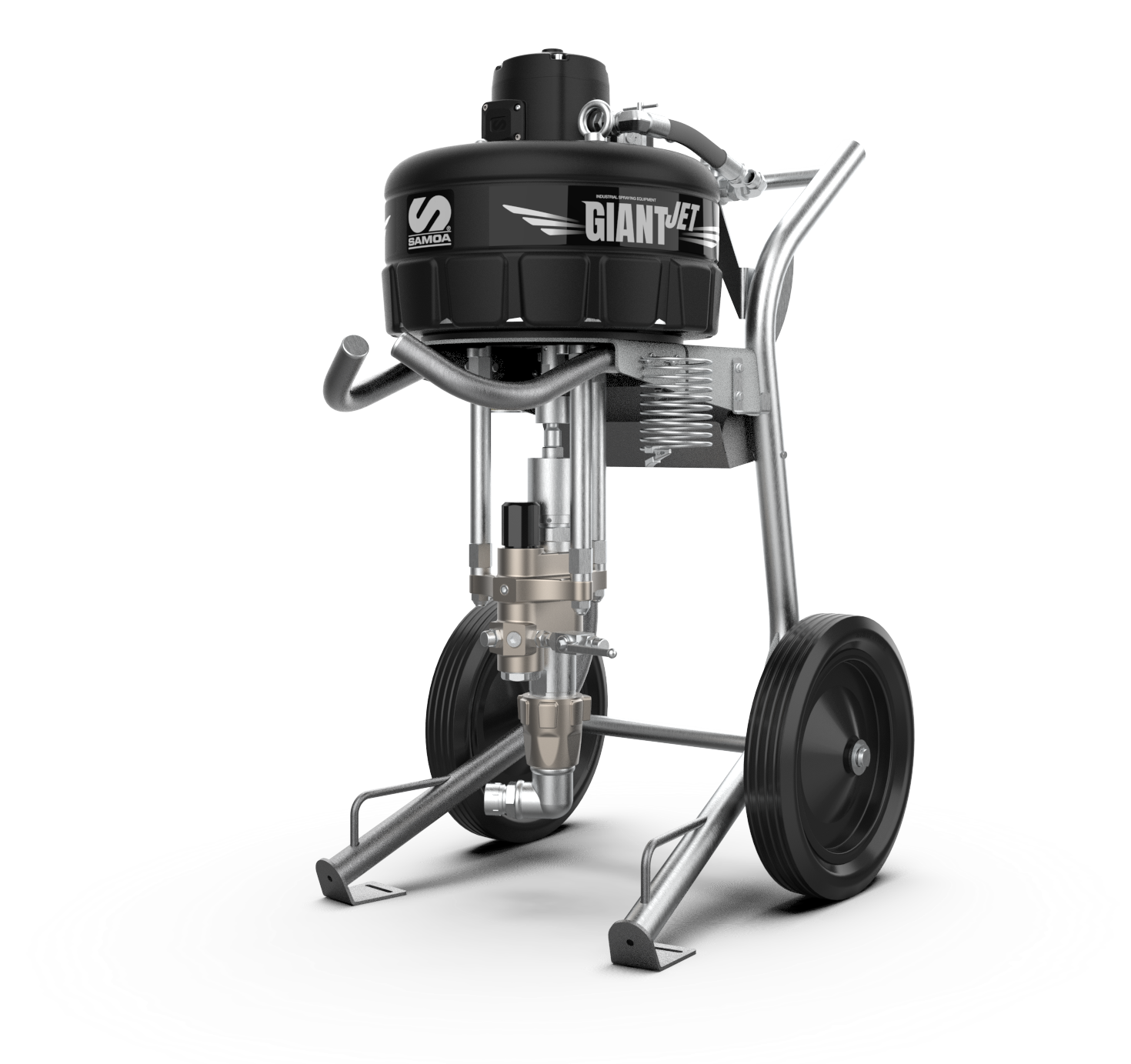

Giant-Jet: Airless Spray Package
Spray
Without Limits
Patented
Design
Reliable
Frost-Control System
Robust
and durable
Proven air motor technology

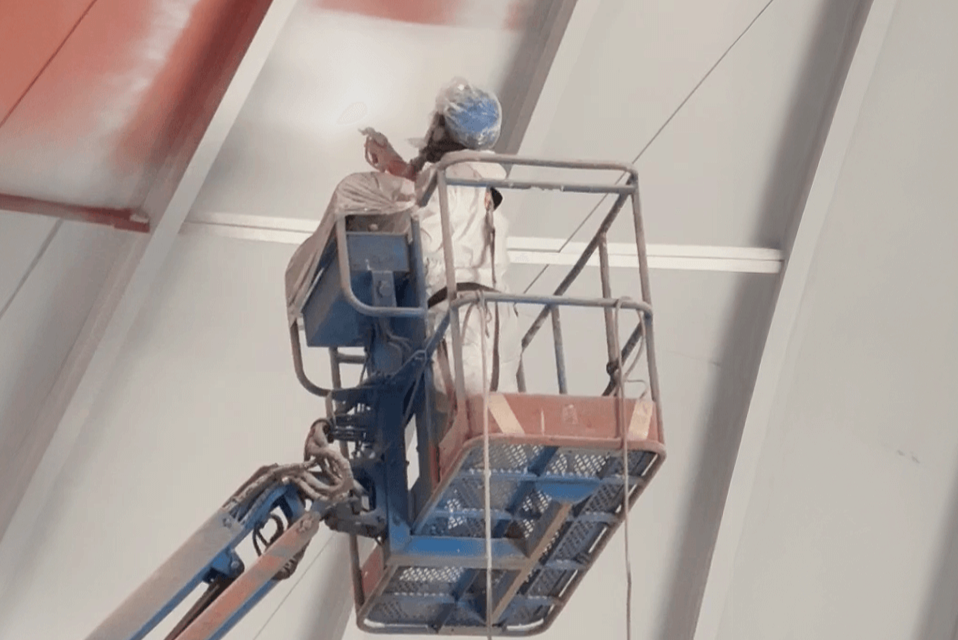

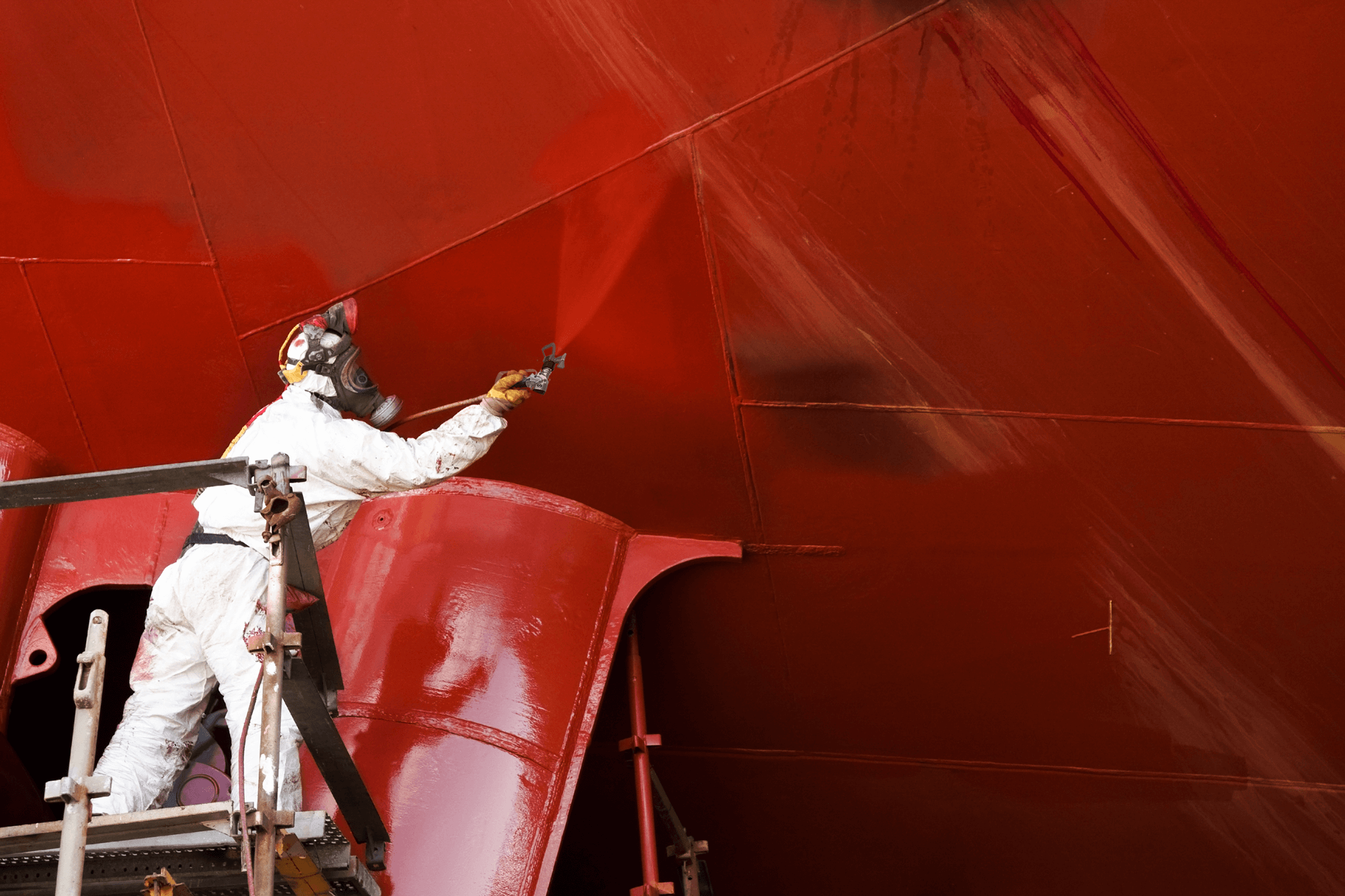

APPLICATIONS

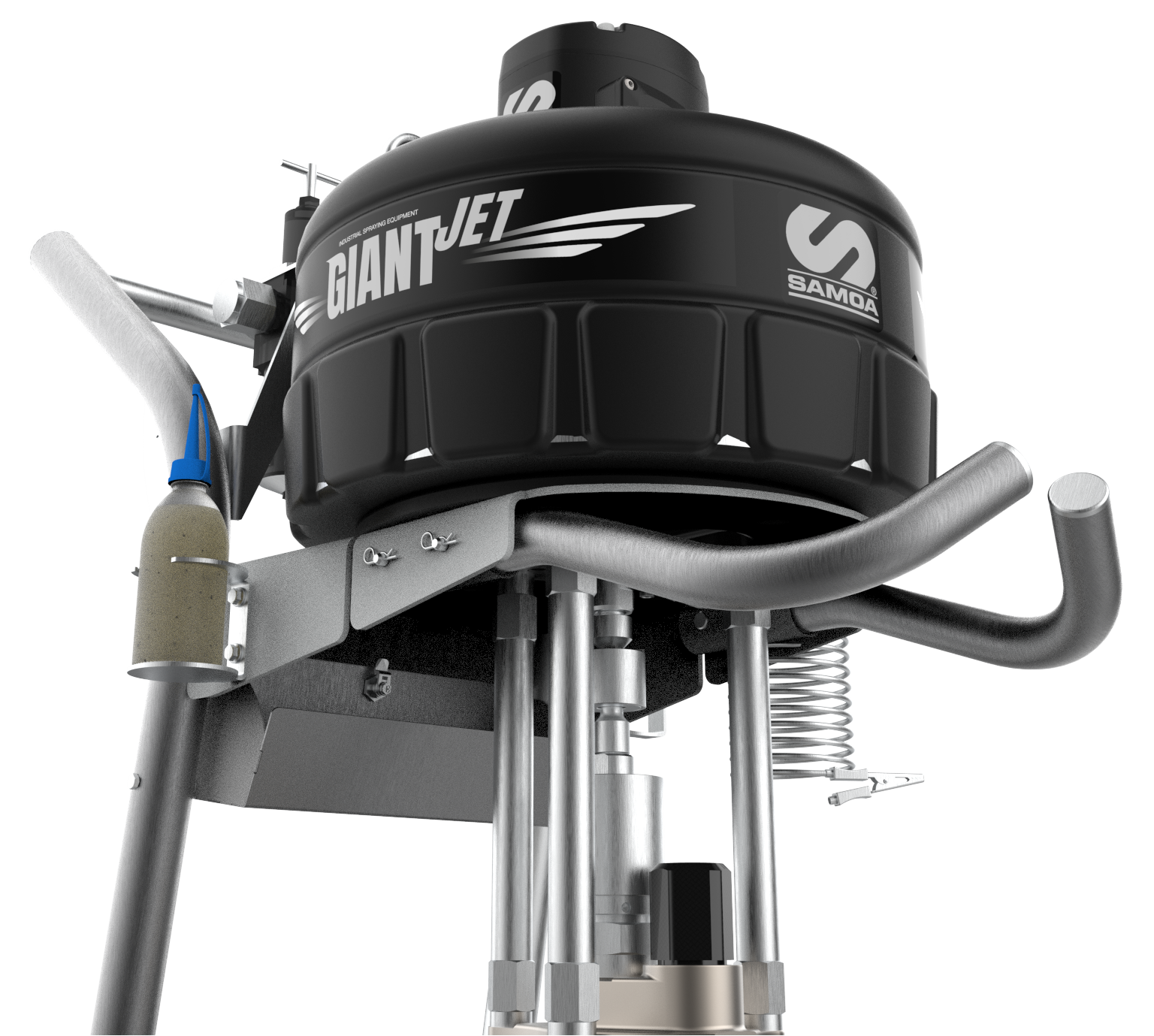

The Air Motor
Full power
Zero icing
Innovative
Operations
Saving
Uninterrumped performance cycle after cycle
Full Performance & Quick Exhaust
Cost-effective & Easier Maintenance
The patented Frost-Control System prevent ice formation and pump's slowdown and stalling for a full performance and reliable operation
SEE HOW IT WORKS
The Air Motor
Full power
Zero icing
Innovative
Operations
Saving
Nonstop performance cycle after cycle
Full Performance & Quick Exhaust
Cost-effective & Easier Maintenance
The patented Frost-Control System prevent ice formation and pump's slowdown or stalling, ensuring full performance and reliable operation
SEE IT IN ACTION
Giant-Jet
Pressure
Suction
Outlets
Right pressure, no matter the distance
High suction capacity for thick products
Three fluids outlets for increased productivity
MATERIALS
I
N
GIANT-JET
Airless Spray Package
GIANT-JET
Airless Spray Package
GIANT-JET
Airless Spray Package
GIANT-JET
Airless Spray Package
GIANT-JET
Airless Spray Package
A
C
T
I
O
N
Giant-Jet
Pressure
Suction
Outlets
Right pressure, no matter the distance
High suction capacity for thick products
Three fluids outlets for increased productivity
Choose your model
Discover our most wanted equipments and their wide range of options: trolleys, hoses or guns.

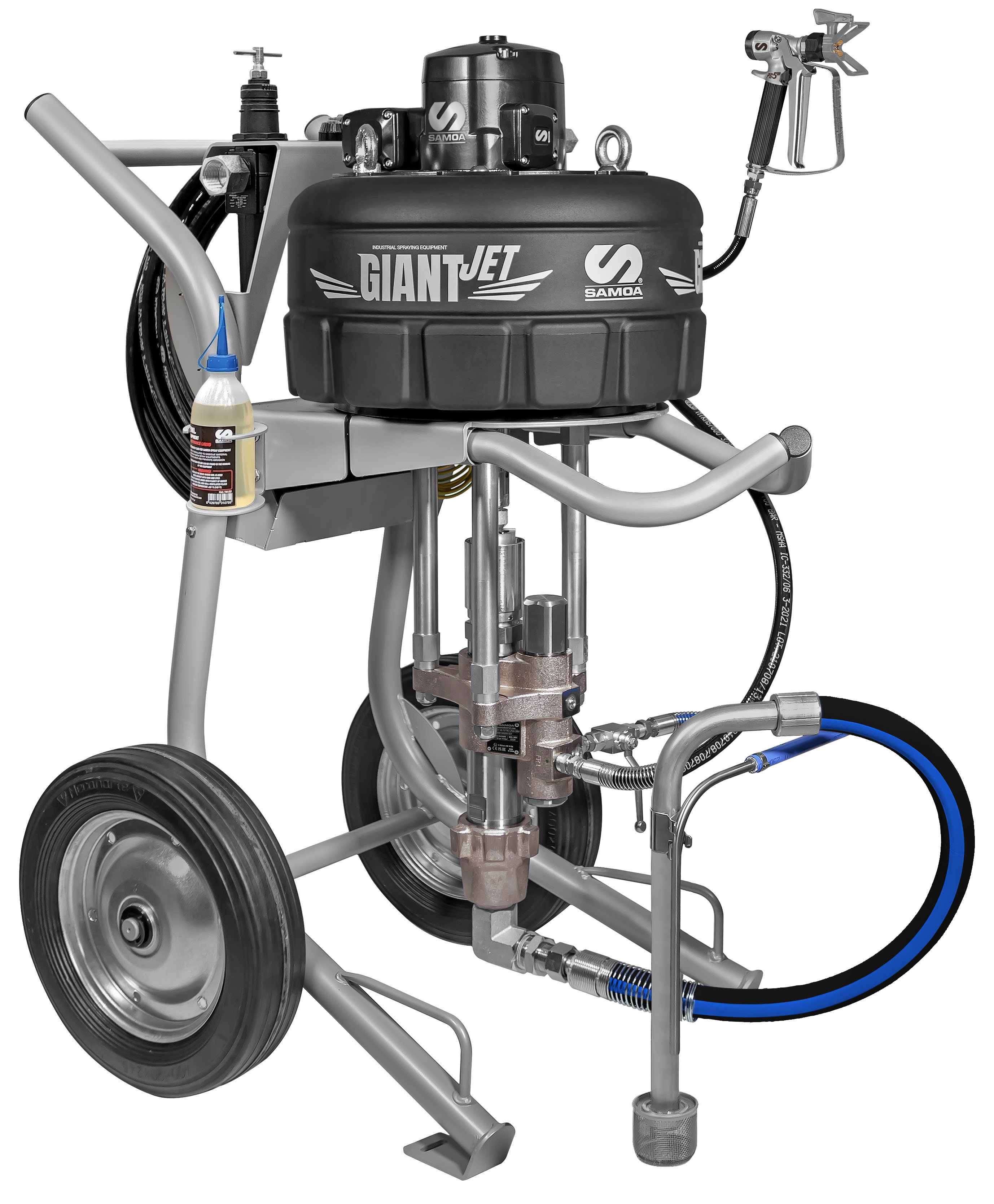

GIANT-JET 72:1
Suitable for heavy-duty applications.
Spraying kit includes:
- Trolley
- Line Filter
- Suction Hose
- Accesories
GIANT-JET 72:1
Suitable for standard-duty applications.
Spraying kit includes:
- Trolley
- Line Filter
- Suction Hose
- Accesories
GIANT-JET 50:1
Suitable for heavy-duty applications.
Spraying kit includes:
- Trolley
- Line Filter
- Suction Hose
- Accesories
GIANT-JET 50:1
Suitable for standard-duty applications.
Spraying kit includes:
- Trolley
- Line Filter
- Suction Hose
- Accesories
| TECHNICAL DATA | GIANT-JET 50-280 | GIANT-JET 72-190 |
|---|---|---|
| Ratio | 50:1 | 72:1 |
| Displacement per cycle | 280 cc | 190 cc |
| Max. delivery flow (@60 cycles/min) | 18 l/min (4.8 gal/min) | 11.4 l/min (3 gal/min) |
| Pump maximum air pressure | 7 bar (100 psi) | 7 bar (100 psi) |
| Pump maximum fluid pressure | 350 bar (5,076 psi) | 500 bar (7,250 psi) |
| Air consumption @60 cycles/min and 6 bar (87 psi) | 3,400 Nl/min (120 SCFM) | 3,400 Nl/min (120 SCFM) |
| Pump air inlet thread | 3/4" BSP (F) | 3/4" BSP (F) |
| Pump fluid inlet thread | 1 1/4" NPT (M) | 1 1/4" NPT (M) |
| Fluid outlet thread | 1/2" NPT (F) | 1/2" NPT (F) |
| Air motor effective diameter | 270 mm (10.7") | 270 mm (10.7") |
| Pump stroke | 125 mm (5") | 125 mm (5") |
| Seals material | PTFE / PE | PTFE / PE |
| Spray package weight | 125 kg (276 lb) | 125 kg (276 lb) |
