SAMOA Industrial
Ref.: CP10A-BAC-HHC
1" AODDP COMPACT, AL-AL, HYT-HYT-HYT, BSP-CENT&LAT&VERT
Ref.: CP10A-BAC-HHC
1" AODDP COMPACT, AL-AL, HYT-HYT-HYT, BSP-CENT&LAT&VERT
Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.
New compact CP10 pump makes the difference through:
· HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption.
· INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragm lifes.
· MAXIMUM VERSATILITY. Metal pumps and a wide range of diaphragms, seats and balls offer broad fluid and application compatibility.
· EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability.
· COMPACT AND UNIVERSAL DESIGN.
This Pivot Series Compact Line model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C). Instruction books: 855888 and 855879.
Video SAMOA PIVOT Series air operated double diaphragm (AODD) pumps
Video: SAMOA U·pump - the Smart pump controller
Video: SAMOA CP10 - PIVOT Series 1” Air-operated double diaphragm pump

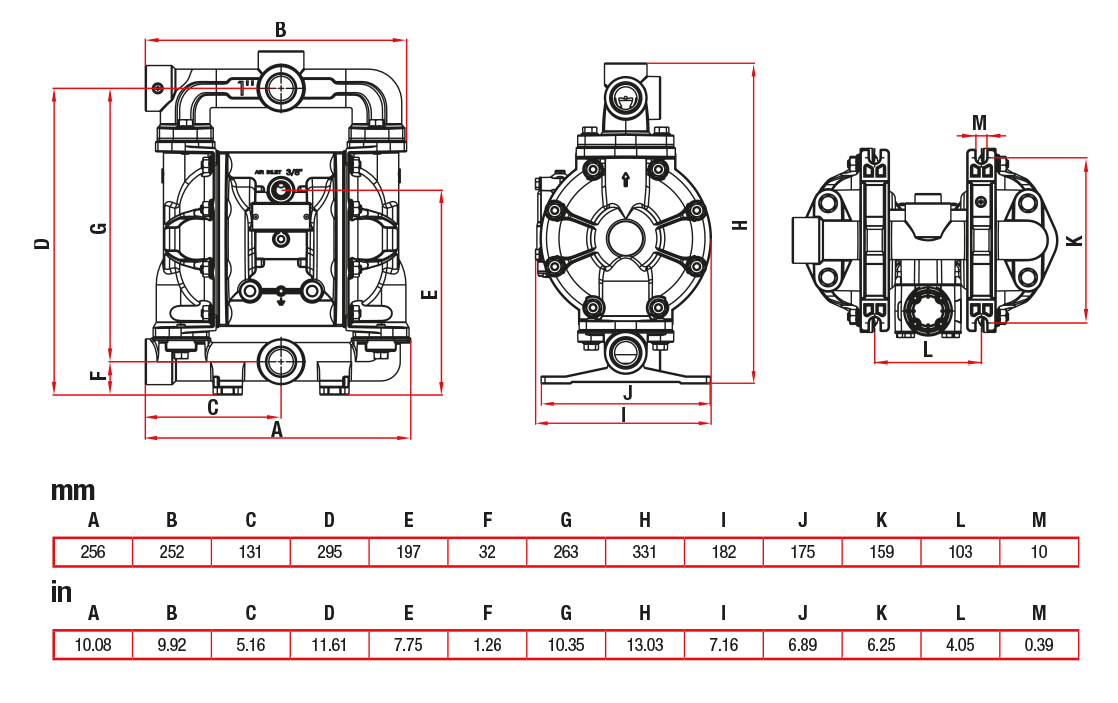

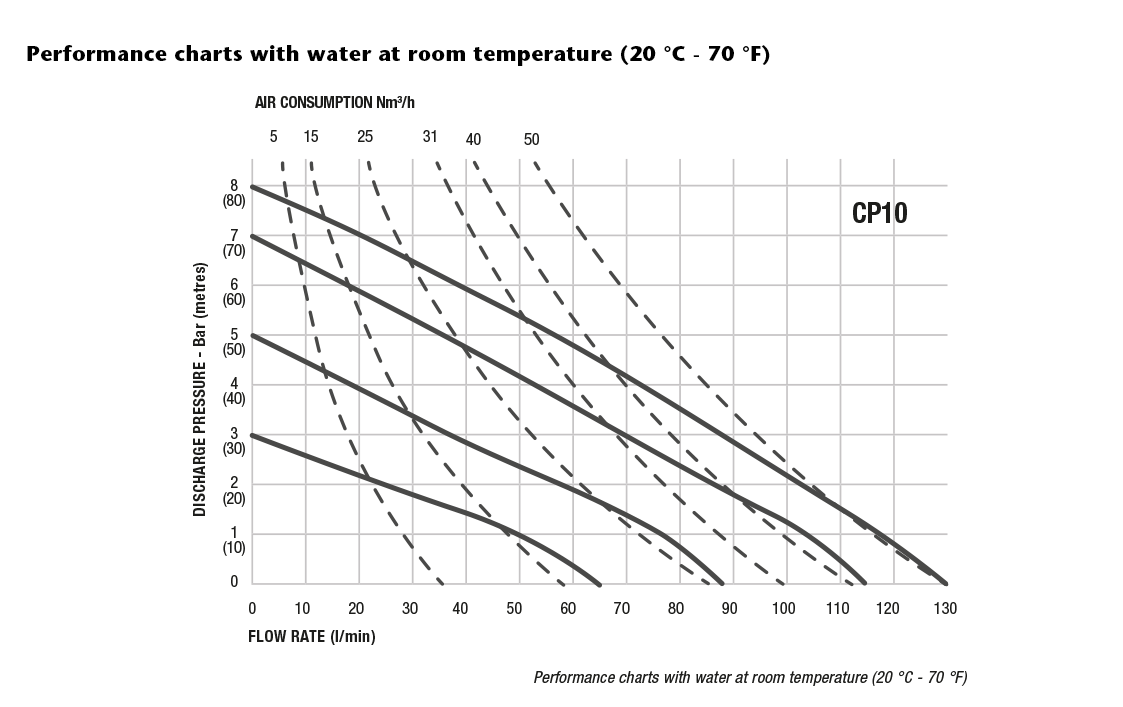

Technical data
Documentation
More information
| Pump size | 1" |
| Pressure ratio | 1:1 |
| Target product type | Pivot Series Diaphragm Pumps |
| Maximum free flow delivery | 130 l/min (35 gal/min) |
| Air pressure operating range | 1,5-8 bar (20-120 psi) |
| Solids in suspension maximum size | 3,2 mm (1,8 ") |
| Maximum dry suction head | 5 m (16 ft) |
| Maximum wet suction head | 8 m (26 ft) |
| Delivery per cycle | 0,4 l (0,1 gal) |
| Fluid inlet | 1" BSP (F) |
| Fluid outlet | 1" NPT (F) |
| Air inlet | 3/8" NPT (F) |
| Air exhaust port | 1/2" NPT (F) |
| Sound level | 75 dB |
| Certification | ATEX |
| Central body & Air chambers material | Aluminium |
| Fluid ports / Location | 1" BSP central and lateral threaded |
| Fluid chambers & Manifolds material | Aluminium |
| Hardware Bolts & Inserts material | Carbon steel |
| Diaphragms type & material | Hytrel |
| Valve seats material | Hytrel |
| Valve balls material | Hytrel |
| Wetted materials | TPE (Hytrel®) |
| Accessories for UE Pumps | No |
| Weight | 5,4 kg (12,1 lb) |
General
Catalogs
Spare parts
Category documents 04
Category documents 05
Category documents 06
Models
| Code | Target product type |
|---|---|
| CP10A-BAC-HHC | Pivot Series Diaphragm Pumps |
| CP10A-NAC-NNG | Pivot Series Diaphragm Pumps |
| CP10A-NAC-MMA | Pivot Series Diaphragm Pumps |
| CP10A-NAC-HHC | Pivot Series Diaphragm Pumps |
| CP10A-NAC-ATZ | Pivot Series Diaphragm Pumps |
| CP10A-BAC-NNG | Pivot Series Diaphragm Pumps |
| CP10A-BAC-MMA | Pivot Series Diaphragm Pumps |
| CP10A-BAC-ATZ | Pivot Series Diaphragm Pumps |
| CP10A-BAC-AMA | - |
| CP10A-BAC-AHC | - |
| UP03B-NWS-WTZ | - |
| UP03B-NPS-PTZ | Pivot Series Diaphragm Pumps |
| UP03B-NPS-PTG | Pivot Series Diaphragm Pumps |
| UP03B-NPS-PTC | Pivot Series Diaphragm Pumps |
| UP03B-NPS-PTA | Pivot Series Diaphragm Pumps |
| UP03B-NDS-CCZ | Pivot Series Diaphragm Pumps |
| UP03B-NDS-CCC | Pivot Series Diaphragm Pumps |
| UP03B-NDS-CCA | Pivot Series Diaphragm Pumps |
| UP03B-BWS-WTZ | - |
| UP03B-BWS-WTA | - |
| UP03B-BPS-PTZ | Pivot Series Diaphragm Pumps |
| UP03B-BPS-PTG | Pivot Series Diaphragm Pumps |
| UP03B-BPS-PTC | Pivot Series Diaphragm Pumps |
| UP03B-BPS-PTA | Pivot Series Diaphragm Pumps |
| UP03B-BDS-CCZ | Pivot Series Diaphragm Pumps |
| UP03B-BDS-CCC | Pivot Series Diaphragm Pumps |
| UP03B-BDS-CCA | Pivot Series Diaphragm Pumps |
