1/2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, UP05, PIVOT SERIES,ALUMINIUM-ALUMINIUM-VITON-VITON, BSP-LAT&CEN-THREATED
1/2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, UP05, PIVOT SERIES,ALUMINIUM-ALUMINIUM-VITON-VITON, BSP-LAT&CEN-THREATED
Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions. UP05 Metallic pumps make the difference through: · HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption. · INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragms life. · MAXIMUM VERSATILITY. Aluminium and Stainless Steel pumps with a wide range of diaphragms, seats and balls options offer broad fluid and application compatibility. Highly suitable for outdoors and general applications with presence of abrasives. · EASY SERVICING. Simplified maintenance and cleaning. The pump is held together by carriage bolts and nuts allowing to accomplish a much faster tear down and rebuild. · COMPACT DESIGN. Ready to meet any OEM application needs. · CONNECTIVITY. Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps. Instruction books: 855876 and 855879.
| Pump size | 1/2" |
| Pressure ratio | 1:1 |
| Target product type | Pivot Series Diaphragm Pumps |

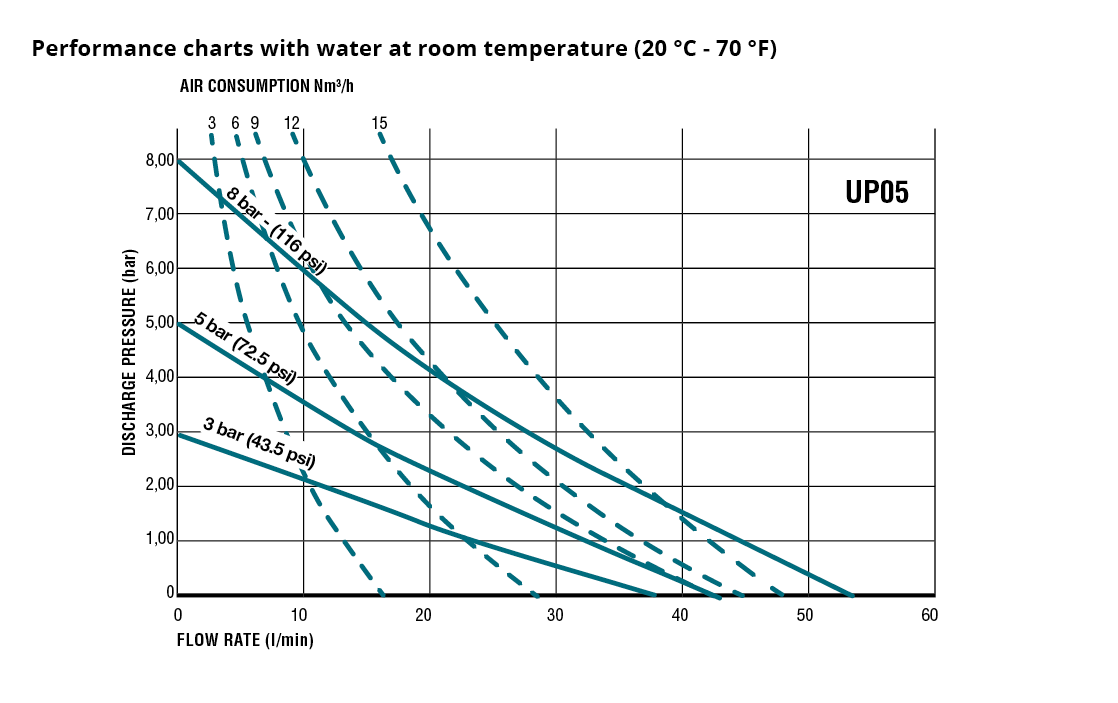

| Maximum free flow delivery | 54 l/min (14,3 gal/min) |
| Air pressure operating range | 1,5-8 bar (20-120 psi) |
| Solids in suspension maximum size | 2,5 mm (0,09 ") |
| Maximum dry suction head | 5 m (16 ft) |
| Maximum wet suction head | 8 m (26 ft) |
| Delivery per cycle | 0,15 l (0,04 gal) |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |
| Air inlet | 1/4" NPSM (F) |
| Air exhaust port | 1/2" NPT (F) |
| Sound level | 75 dB |
| Certification | ATEX |
| Central body & Air chambers material | Aluminium |
| Fluid ports / Location | 1/2" BSP central and lateral threaded |
| Fluid chambers & Manifolds material | Aluminium |
| Hardware Bolts & Inserts material | Carbon steel |
| Diaphragms type & material | Viton |
| Valve seats material | Aluminium |
| Valve balls material | Viton |
| Wetted materials | Aluminium, Viton |
| Accessories for UE Pumps | No |
| Weight | 3,9 kg (8,6 lb) |
