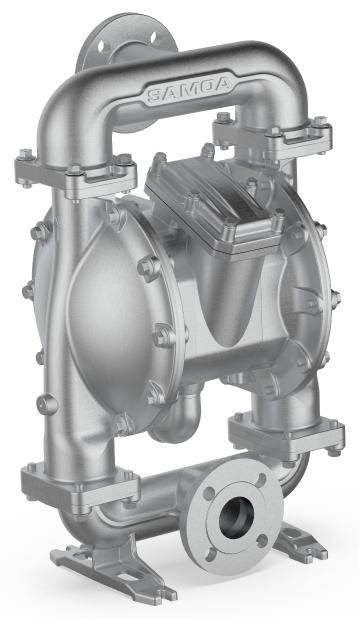

2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, UP20, PIVOT SERIES, STAINLESSSTEEL-STAINLESS STEEL-PTFE-PTFE, ANSI-CENTRAL-FLANGED
2" PNEUMATIC DOUBLE DIAPHRAGM PUMP, UP20, PIVOT SERIES, STAINLESSSTEEL-STAINLESS STEEL-PTFE-PTFE, ANSI-CENTRAL-FLANGED
Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions. UP20 pump makes the difference through: · HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption. · INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragm lifes. · MAXIMUM VERSATILITY. Metal pumps and a wide range of diaphragms, seats and balls offer broad fluid and application compatibility. · EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability. This model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C). VIDEO Youtube: https://youtu.be/sGp4aNBHwiI Instruction books: 855859 and 855865.
| Pump size | 2" |
| Pressure ratio | 1:1 |
| Target product type | Pivot Series Diaphragm Pumps |
| Maximum free flow delivery | 650 l/min (172 gal/min) |
| Air pressure operating range | 1,5-8 bar (20-120 psi) |
| Solids in suspension maximum size | 6,4 mm (0,25 ") |
| Maximum dry suction head | 5 m (16 ft) |
| Maximum wet suction head | 8 m (26 ft) |
| Delivery per cycle | 4,5 l (1,2 gal) |
| Fluid inlet | 2" DIN / ANSI flanged |
| Fluid outlet | 2" DIN / ANSI flanged |
| Air inlet | 3/4" NPT (F) |
| Air exhaust port | 1 1/2" NPT (F) |
| Sound level | 85 dB |
| Certification | ATEX |
| Central body & Air chambers material | Stainless Steel |
| Fluid ports / Location | 2" ANSI/DIN central flanged |
| Fluid chambers & Manifolds material | Stainless Steel |
| Hardware Bolts & Inserts material | Stainless steel |
| Diaphragms type & material | PTFE |
| Valve seats material | Stainless steel (AISI 316) |
| Valve balls material | PTFE |
| Wetted materials | Stainless steel, PTFE |
| Accessories for UE Pumps | No |
| Weight | 82 kg (181 lb) |
