Ref.: 685710

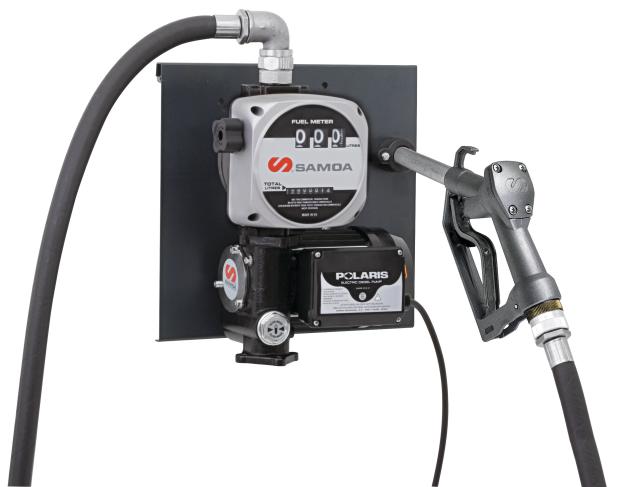

230 V AC POLARIS SERIES WALL MOUNTED ELECTRIC PUMP STATIONARY PACKAGEFOR DIESEL WITH NOZZLE AND METER, 50 L/MIN

Ref.: 685710

230 V AC POLARIS SERIES WALL MOUNTED ELECTRIC PUMP STATIONARY PACKAGEFOR DIESEL WITH NOZZLE AND METER, 50 L/MIN

50 or 70 l/min Polaris Series pump on a bracket for wall or tank mounting. The kit includes a 230 V - 50 Hz diesel pump with on/off switch and 1,8 m cable with plug, wall mounting bracket, 4 m delivery hose, nozzle and a three digit meter (PN 680 300) flange mounted to the pump and with a 90º swivelling elbow outlet. Fluid inlet connection 1" BSP (F). Order suction accessory suparately when not included. Meter valid for non commercial applications only. Instruction book: 868810.

About this product:

REQUEST A QUOTE BECOME A DISTRIBUTOR

File 685710

Videos are not displayed because cookies are not accepted
Technical data
Compatible fluids Diesel
Type Stationary Pump Packages
Pump type Electric Pumps
Components 685720, 689024, 361000, 680300, 689683, 689052
Documentation

General

Instruction manuals

868810 Instruction book: 230 V AC Polaris series electric pumps (PDF)
928 kb

Catalogs

Spare parts

Category documents 04

Category documents 05

Category documents 06

More information

Kit components

Code Product
361000 ALUMINIUM MANUAL NOZZLE, 100 L/MIN, 1" BSP (F) INLET
680300 DIESEL METER WITH MECHANICAL 3 DIGIT REGISTER, 100 L/MIN
685720 230 V AC ROTARY VANE PUMPS FOR DIESEL, POLARIS SERIES, 50 L/MIN
689024 DIESEL HOSE, 4 M x Ø 19 MM, 1" BSP (M)
689052 WALL BRACKET FOR ELECTRIC PUMPS
689683 VALVE WALL BRACKET FOR POLARIS SERIES ELECTRIC PUMPS, DIESEL (KIT COMPONENT)

Models

Code Description Components
685710 Wall mounted pump Stationary package with nozzle and meter, 50 l/min 685720, 689024, 361000, 680300, 689683, 689052
685719 Wall mounted pump Stationary package with automatic nozzle, meter and filter, 50 l/min 685721, 689021, 688300, 680300, 689090, 689683, 689052
685718 Wall mounted pump Stationary package with automatic nozzle, meter and filter, 70 l/min 685720, 689021, 688300, 680300, 689090, 689683, 689052
685717 Wall mounted pumpStationary package with automatic nozzle and meter, 50 l/min 685720, 689021, 688300, 680300, 689683, 689052
685716 Wall mounted pump Stationary package with automatic nozzle and meter, 70 l/min 685721, 689021, 688300, 680300, 689683, 689052
685715 Wall mounted pump cabinets with automatic nozzle and meter, 70 l/min 685721, 689021, 688300, 680300, 999997
685713 Wall mounted pump Stationary package with nozzle and meter, 70 l/min 685721, 689024, 361000, 680300, 689683, 689052
685712 Wall mounted pump cabinets with automatic nozzle and meter, 50 l/min 685720, 689021, 688300, 680300, 999997
685709 Wall mounted pump Stationary package with automatic nozzle, meter and suction Stationary package, 70 l/min 685721, 689021, 688300, 680300, 689037, 689683, 689052
685708 Wall mounted pump Stationary package with automatic nozzle, meter and suction stationary package, 50 l/min 685720, 689021, 688300, 680300, 689037, 689683, 689052
685974 Pump stationary package with nozzle and suction stationary package, 50 l/min 685720, 689024, 361000, 689030
685772 Pump stationary package with automatic nozzle, 70 l/min 685721, 689021, 688300
685771 Pump stationary package with nozzle, 70 l/min 685721, 689024, 361000
685755 Pump stationary package with automatic nozzle, meter and suction stationary package, 70 l/min 685721, 689021, 688300, 689036
685754 Pump stationary package with automatic nozzle, meter and suction stationary package, 50 l/min 685720, 689021, 688300, 689036
685753 Pump stationary package with automatic nozzle and meter, 70 l/min 685721, 689021, 688300, 680300
685752 Pump stationary package with automatic nozzle and meter, 50 l/min 685720, 689021, 688300, 680300
685751 Pump stationary package with nozzle and meter, 70 l/min 685721, 689024, 361000, 680300
685750 Pump stationary package with nozzle and meter, 50 l/min 685720, 689024, 361000, 680300
685743 Pump stationary package with automatic nozzle and suction stationary package, 50 l/min 685720, 689021, 688300, 689030
685742 Pump stationary package with automatic nozzle, 50 l/min 685720, 689021, 688300
685741 Pump stationary package with nozzle, 50 l/min 685720, 689024, 361000
685778 Wall mounted pump lockable cabinets with automatic nozzle and meter, 70 l/min 685721, 689021, 688300, 680300, ist01070628
685777 Wall mounted pump lockable cabinets with automatic nozzle and meter, 50 l/min 685720, 689021, 688300, 680300, ist01070628
