SAMOA Industrial
Ref.: 363115
CONTROL VALVE, PA40 SERIES, 40 L/MIN, FLEXIBLE OUTLET 90° TUBE, AUTOMATIC
Ref.: 363115
CONTROL VALVE, PA40 SERIES, 40 L/MIN, FLEXIBLE OUTLET 90° TUBE, AUTOMATIC
SAMOA control valves are used at the end of hose assembly to dispense
lubricants and antifreeze solutions. · Extensively and rigorously field
tested. Reliable performance. · Aluminium body with light weight
ergonomic design. Soft grip valve for comfort. · Cam and piston valve
design for minimum flow resistance. · Large inlet swivel and inlet

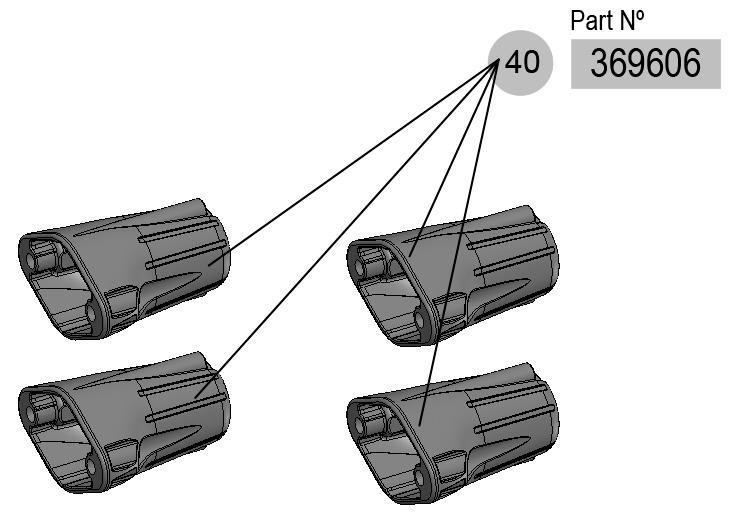

filter with large screen surface. · Swivel and outlet covers. · Safety

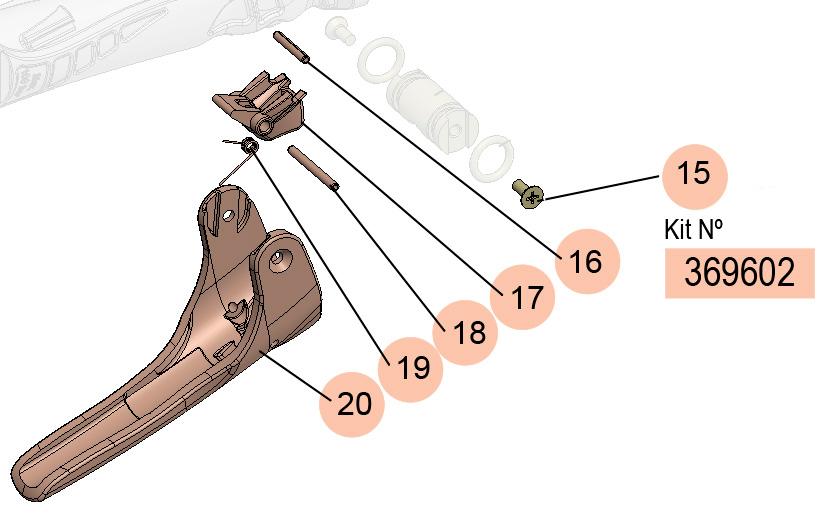

latch must be depressed before product can be dispensed. Trigger can be
locked open for dispensing large volumes. · Wide selection of outlets
available. Instruction books: 836829, 836847, 836850 and 836835.
Technical data
Documentation
More information
| Compatible fluids | Oil, Transmission fluid, Coolant |
| Maximum free flow delivery | 40 l/min (10,57 gal/min) |
| Maximum outlet pressure | 100 bar (1450 psi) |
| Operating temperature range | -10 - 70 ⁰C (14-160 ⁰F) |
| Inlet size | 1/2" |
| Fluid inlet | 1/2" BSP (F) |
| Fluid outlet | 1/2" BSP (F) |

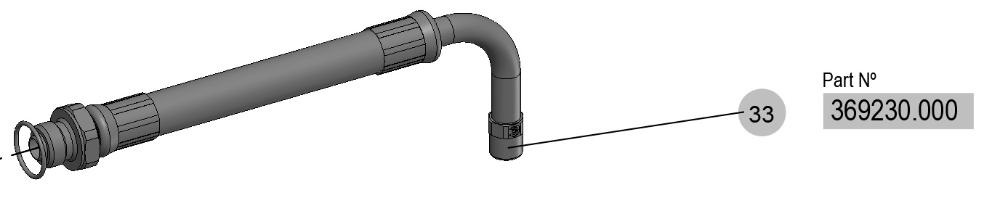

| Outlet type | 90° flexible tube, automatic tip |
| Meter | No meter |
| Wetted materials | Aluminium, Zinc plated steel, TPU, Polyamide |
| Weight | 0,47 kg (1 lb) |
General
Instruction manuals
Category documents 04
Category documents 05
Category documents 06
Models
| Code | Compatible fluids | Inlet size | Outlet type |
|---|---|---|---|
| 363115 | Oil, Transmission fluid, Coolant | 1/2" | 90° flexible tube, automatic tip |
| 363118 | Oil, Transmission fluid, Coolant | 1/2" | Formable tube, quarter turn narrow manual tip |
| 363117 | Oil, Transmission fluid, Coolant | 1/2" | Formable tube, quarter turn manual tip |
| 363116 | Oil, Transmission fluid, Coolant | 1/2" | 60° rigid tube, quarter turn manual tip |
| 363114 | Oil, Transmission fluid, Coolant | 1/2" | 90° flexible tube, quarter turn manual tip |
| 363112 | Oil, Transmission fluid, Coolant | 1/2" | Flexible tube, automatic tip |
| 363100 | Oil, Transmission fluid, Coolant | 1/2" | No outlet |
