Ref.: 559101

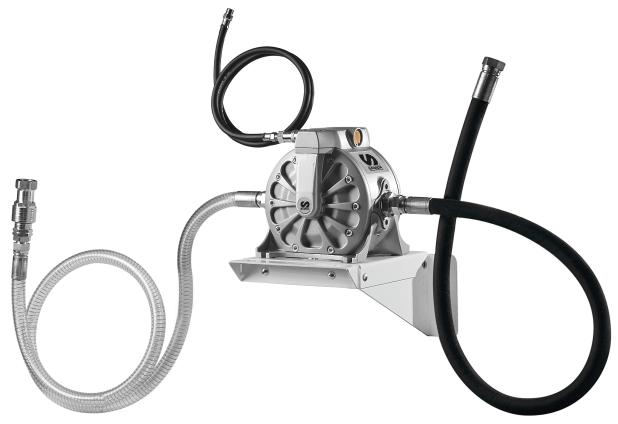

DF100 1:1 - WASTE OIL EVACUATION PNEUMATIC PUMP KIT, 100 L/MIN

Ref.: 559101

DF100 1:1 - WASTE OIL EVACUATION PNEUMATIC PUMP KIT, 100 L/MIN

Special DF100 double diaphragm pump kit for discharging waste oil drainers through a hydraulic coupler. Kit includes: DF100 double diaphragm pump (551 030: improved suction performance, NBR diaphragms) with wall bracket, 1,5 m air connection hose with quick coupler and connector, 1,5 m discharge hose and 1,5 m transparent suction hose with hydraulic connector 950 352. Instruction book: 855852.

About this product:

REQUEST A QUOTE BECOME A DISTRIBUTOR

File 559101

Videos are not displayed because cookies are not accepted
Technical data
Compatible fluids Waste oil
Type Pump Kits
Pump type Pneumatic Diaphragm Pumps (AODDP)
Components 551021, 360101, 247710, 950352, 737000, 362301
Documentation

General

Instruction manuals

855852 Instruction book: DF100 - 1:1 waste oil evacuation pneumatic pump kit, 100 l/min (PDF)
289 kb

Catalogs

Spare parts

Category documents 04

Category documents 05

Category documents 06

More information

Kit components

Code Product
247710 AIR HOSE, CONNECTION THREAD 3/8" BSPT (M) x 1/2" BSPT (M), 1 M
360101 WALL BRACKET FOR DF100 DIAPHRAGM PUMPS
362301 OIL HOSE, 1,5 M x 3/4"
737000 WASTE OIL SUCTION HOSE, TRANSPARENT, 2 M, 3/4"
950352 QUICK HYDRAULIC CONNECTOR, 3/4” BSP (F)

Models

Code Description Components
559101 Pump kit 551021, 360101, 247710, 950352, 737000, 362301
559111 Pump kit with RM-100 hose reel 551030, 508225, 247715, 251438, 362301
