Ref.: 332120

NICKEL PROTECTED PNEUMATIC PISTON PUMP, PUMPMASTER 2, PM2 - 1:1, STUB

Ref.: 332120

NICKEL PROTECTED PNEUMATIC PISTON PUMP, PUMPMASTER 2, PM2 - 1:1, STUB

PM2 series air operated piston pumps. Double acting air operated low pressure pumps for transferring coolants. Pumps include height adjustable 2” BSP (M) bung adaptor for tank or drum bung mounting. air operated piston pumpss for Fluids accessory: PN 331 110.002, PVC suction tube for 205 l drums. Instruction book: 860814.

About this product:

REQUEST A QUOTE BECOME A DISTRIBUTOR

File 332120

Videos are not displayed because cookies are not accepted
Technical data
Fluids Other fluids
Compatible fluids Coolant, Water based fluids
Pump mounting Universal stub pump with bung adaptor
Pressure ratio 1:1
Air pressure operating range 1,5-10 bar (21,75-145 psi)
Air consumption 150 NL/min (5,3 scfm)
Maximum outlet pressure 10 bar (145 psi)
Air motor effective diameter 35 mm (1,5")
Air motor stroke 75 mm (3")
Delivery per cycle 13,5 l (3,6 gal)
Cycles per minute (aprox.) 100 cycles
Delivery 13,5 l/min (3,6 gal/min)
Maximum free flow delivery 55 l/min (14,5 gal/min)
Air inlet 1/4" BSP (F)
Fluid inlet 1" BSP (F)
Fluid inlet type Ball check
Fluid outlet 3/4" BSP (F)
Wetted materials Nickel coated aluminium, Steel, Stainless steel, Acetal, Viton, Polyurethane
Pump tube material Carbon steel
Sound level 80 dB

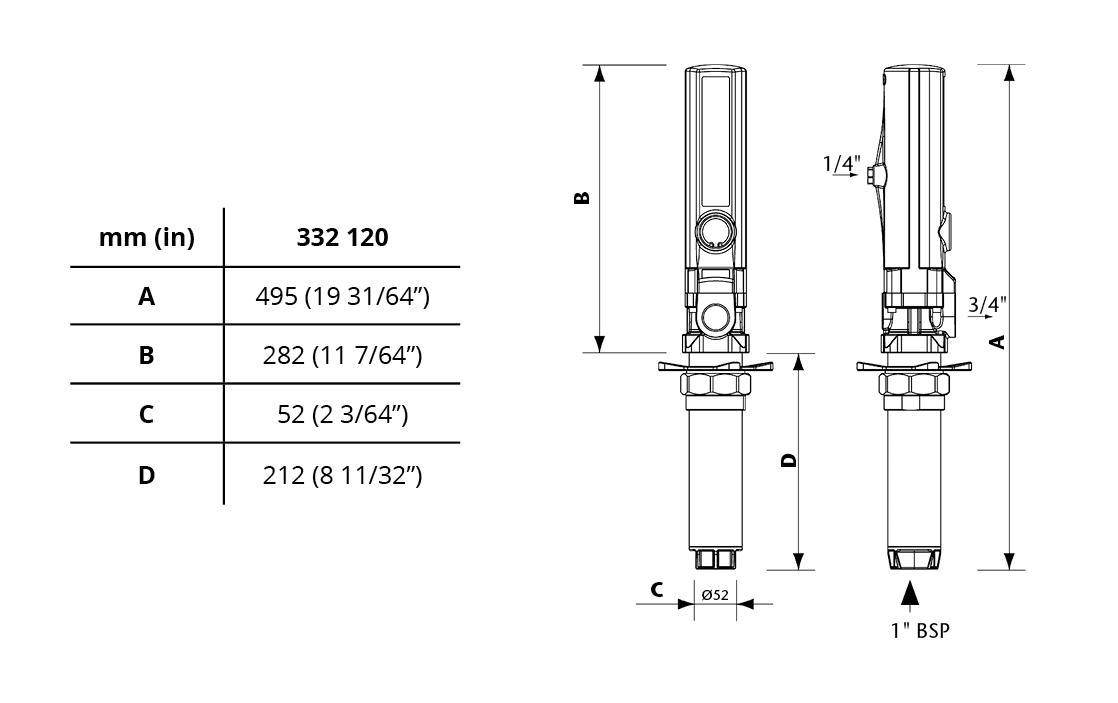

Tube height 212 mm (8,35")
Total height 495 mm (19,5")
Weight 3 kg (6,6 lb)
Documentation

General

Instruction manuals

860814 Instruction book: Nickel protected pneumatic coolant piston pump, Pumpmaster 2, PM2 - 1:1 (PDF)
2.0 mb

Catalogs

Product catalogue: GENERAL EXPORT, 2024 EN (PDF)
15.2 mb

Spare parts

/6203534
687 kb

Category documents 04

Category documents 05

Category documents 06
