Ref.: 106240

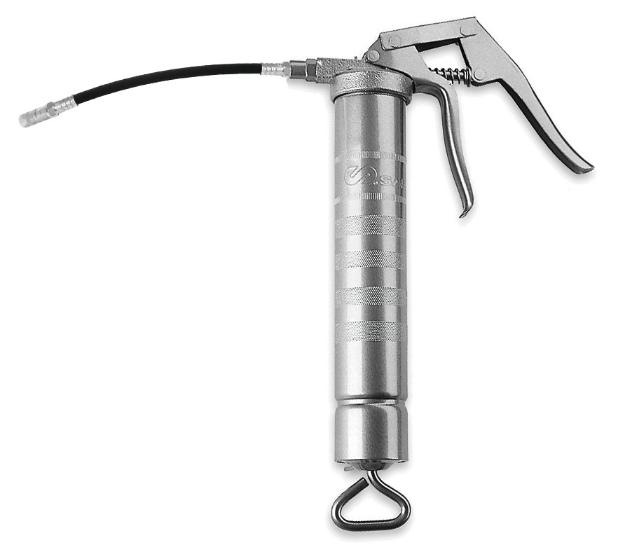

PISTOL GRIP GREASE PUMP, SG SERIES, 500 CC, FLEXIBLE OUTLET
Ref.: 106240
PISTOL GRIP GREASE PUMP, SG SERIES, 500 CC, FLEXIBLE OUTLET
500 cc pistol grip grease pump. Individually boxed. Filler valve 128003 and with 300 mm single braid reinforced outlet hose with a four-jaw hydraulic type connector (PN 137 031). Pistol grip grease pump for hard to reach lubrication points. Three way loading: 400 g (14 oz) cartridges, bulk grease suction or filler pump. Heavy duty cast iron head with precision fit piston. Maximum working pressure: above 250 bar (3,650 psi).
About this product:
File 106240
Technical data
Documentation
More information
Compatible fluids | Grease |
Operation type | Pistol Grip Pumps |
Maximum outlet pressure | 250 bar (3650 psi) |
Delivery | 1,1 cc (0.037 oz) |
Reservoir capacity | 500 cc (17 oz) |
Accesories
Angled steel delivery spout. Fits directly to the pump outlet.
Straight stem with four-jaw connector (121 011).
Positionable 45° angled rigid stem with four-jaw connector with check valve (121 011).
Straight stem with zerk nozzle (124 011).
Straight stem with cupped nozzle (123 011).
Angled stem with four-jaw connector (PN 121 011).
Carrying case for PG-20V battery grease guns. Heavy-duty carrying case with metal latches and padlock ready. Shoulder strap included.
20 V Li-Ion battery charger for PG-20V grease gun batteries.
4 ah 20 v Li-Ion battery pack for PG-20V battery grease guns.
2 ah 20 v Li-Ion battery pack for PG-20V battery grease guns,
Grease outlet hose for battery grease guns, 1100 mm (coupler is not included).
Grease outlet hose with grease connector 121020, 4.000 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst...
Grease outlet hose with grease connector 121020, 2.000 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst...
Grease outlet hose with grease connector 121020, 500 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst...
Grease outlet hose with grease connector 121020, 400 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst...
Grease outlet hose with grease connector 121020, 300 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst...
Grease outlet hose, 4.000 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose, 2.000 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose, 1.000 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose, 500 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose, 400 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose, 300 mm. Double steel braid reinforced rubber hoses. Max working pressure: 415 bar. Min. burst pressure: 1.650 bar. 1/8"...
Grease outlet hose with grease connector 121011, 2.000 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. ...
Grease outlet hose with grease connector 121011, 500 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. ...
Grease outlet hose with grease connector 121011, 400 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. ...
Grease outlet hose with grease connector 121011, 300 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. ...
Grease outlet hose, 2000 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. Minimum burst pressure: 1.000 bar....
Grease outlet hose, 500 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. Minimum burst pressure: 1.000 bar. ...
Grease outlet hose, 400 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. Minimum burst pressure: 1.000 bar. ...
Grease outlet hose, 300 mm. Single polyester braid reinforced rubber hoses. Maximum working pressure: 400 bar. Minimum burst pressure: 1.000 bar. ...
Quick connect adaptor for Ø 18 mm hydraylic connectors.
Grease loader fitting for Ø 9 mm valve. 1/4" BSP (M).
Grease loader fitting for Ø 12,5 mm valve. 1/4" BSP (M).
Needle nose adaptor for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. For...
Seal off adaptor for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. For...
Grease needle nozzle for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. With...
Grease zerk nozzle for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. For zerk...
Grease cupped nozzle for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. For...
Giant cupped nozzle for use with hand operated grease guns only. Connection thread: 1/8" NPT (F). Recomended working pressure 150 bar. For...
For use with hand operated units on button head nipples. Maximum working pressure 150 bar. Connection thread 1/8" NPT (F). Ø 22 mm. Rubber...
For use with hand operated units on button head nipples. Maximum working pressure 150 bar. Connection thread 1/8" NPT (F). Ø 15/16 mm. Rubber...
For use with hydraulic grease nipples or fittings. Smooth lock-on mechanism that eases grease fitting coupling and uncoupling. Durable, jaws-free...
For use with hydraulic grease nipples or fittings. All connector heads, contact surfaces and jaws are manufactured in hardened steel. Ø15 mm,...
For use with hydraulic grease nipples or fittings. All connector heads, contact surfaces and jaws are manufactured in hardened steel. Check valve...
Hydraulic grease connector without check valve For use with hydraulic grease nipples or fittings. All connector heads, contact surfaces and jaws...
For use with hydraulic grease nipples or fittings. All connector heads, contact surfaces and jaws are manufactured in hardened steel. Check valve...
