Ref.: 532131
PNEUMATIC PISTON GREASE PUMP, PUMPMASTER 60, PM60 - 12:1, BULK TOTE, NPT
Ref.: 532131
PNEUMATIC PISTON GREASE PUMP, PUMPMASTER 60, PM60 - 12:1, BULK TOTE, NPT

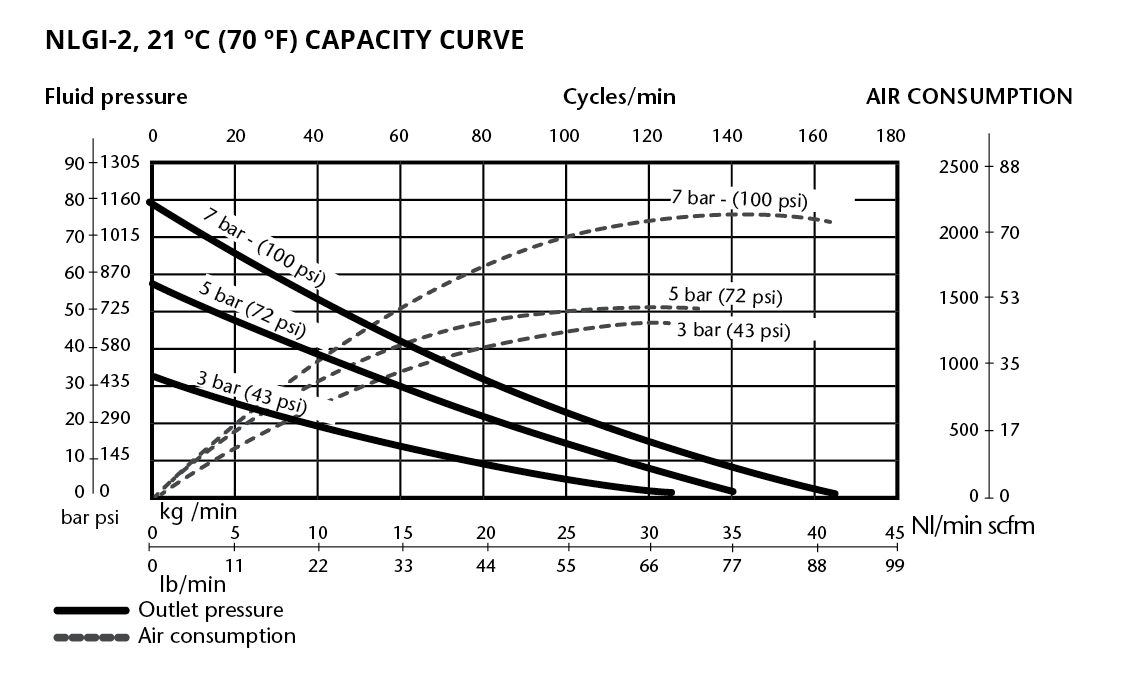

PM60 series air operated piston pumps. Moderate pressure, very high volume double acting grease pump for use in transfer applications. These pumps can be used with all type of grease up to NLGI-2. Pumps are available for horizontal mounting on grease totes and grease bags and they include an adaptor to fit a 3” Cam-Lock coupler. They can be used with 185 kg - 400 lb drums when mounted to air pneumatic inductor (see “Grease pump kits” section in this chapter.) Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 °C (68 °F) and 60 cpm. Noise level measured at 1 m (3.3’) from the pump, 7 bar (100 psi) air pressure and free delivery. Includes adaptor 753 110 to fit a 3" cam-lock connector for use in totes and grease bags. Instruction book: 853810.
About this product:
File 532131
Videos are not displayed because cookies are not accepted
Technical data
Documentation
More information
Fluids | Grease |
Compatible fluids | Grease |
Pump mounting | Bulk tote |
Pressure ratio | 12:1 |
Air pressure operating range | 1,5-7 bar (21,75-20 psi) |
Air consumption | 1100 NL/min (39 scfm) |
Maximum outlet pressure | 84 bar (1218 psi) |
Air motor effective diameter | 150 mm (6") |
Air motor stroke | 100 mm (4") |
Delivery per cycle | 40 kg (88 lb) |
Cycles per minute (aprox.) | 60 cycles |
Delivery | 15 kg/min (33 lb/min) |
Maximum free flow delivery | 40 kg/min (88 lb/min) |
Air inlet | 1/2" NPT (F) |
Fluid inlet type | Chop-check |
Fluid outlet | 1" NPT (F) |
Wetted materials | Cast iron, Steel, Hard chromed steel, UHMWPE, NBR, PTFE, Polyurethane |
Pump tube material | Carbon steel |
Sound level | 80 dB |

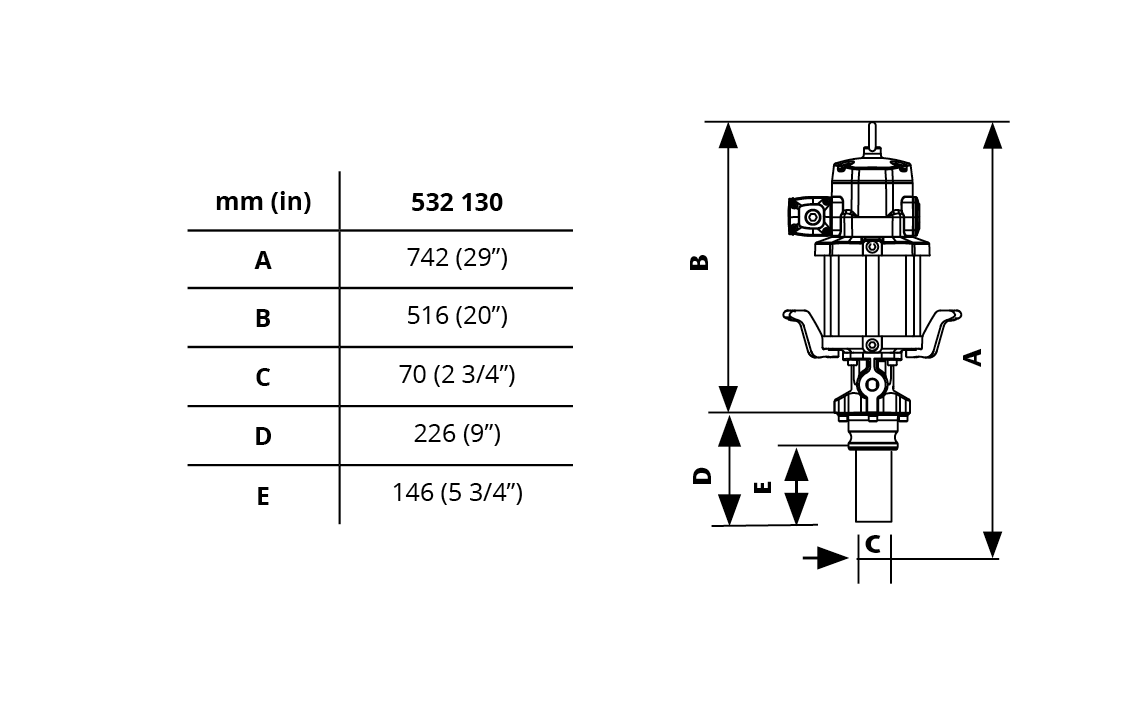

Tube height | 226 mm (8,9") |
Total height | 742 mm (29") |
Weight | 19 kg (42 lb) |
Models
Code | Fluids | Pump mounting | Fluid outlet | Tube height | Total height |
---|---|---|---|---|---|
532131 | Grease | Bulk tote | 1" NPT (F) | 226 mm (8,9") | 742 mm (29") |
532130 | Grease | Bulk tote | 1" BSP (F) | 226 mm (8,9") | 742 mm (29") |
