Ref.: 537131

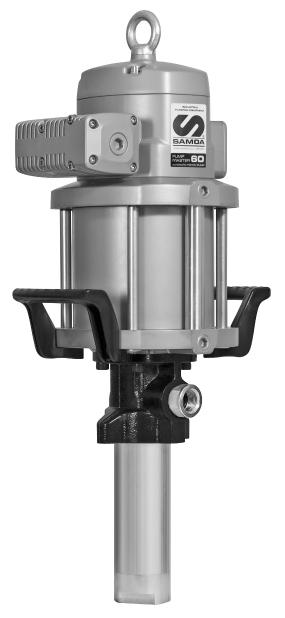

PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 12:1, STUB, NPT
Ref.: 537131
PNEUMATIC PISTON OIL PUMP, PUMPMASTER 60, PM60 - 12:1, STUB, NPT
PM60 series air operated piston pumps. Double acting air operated moderate pressure and high delivery for very large installation with simultaneous operation outlets or when low air pressure would limit pump performances. Built in port for optional pressure relief valve (PN 609 007). Flange mounted pump. Maximum air consumption with 5 bar (72 psi) air inlet pressure and 60 cpm. Maximum noise level measured at 1 m (3.3') from the pump, 7 bar (102 psi) air pressure and free delivery. Instruction book: 853805.
About this product:
File 537131
Technical data
Documentation
More information
| Fluids | Oil |
| Compatible fluids | Oil, Transmission fluid |
| Pump mounting | Universal stub pump |
| Pressure ratio | 12:1 |
| Air pressure operating range | 1,5-12 bar (21,75-174 psi) |
| Air consumption | 1150 NL/min (41 scfm) |
| Maximum outlet pressure | 144 bar (2040 psi) |
| Air motor effective diameter | 150 mm (6") |
| Air motor stroke | 100 mm (4") |
| Delivery per cycle | 20 l (5,3 gal) |
| Cycles per minute (aprox.) | 60 cycles |
| Delivery | 20 l/min (5,3 gal/min) |
| Maximum free flow delivery | 65 l/min (17,2 gal/min) |
| Air inlet | 1/2" NPT (F) |
| Fluid inlet | 1 1/2" NPT (F) |
| Fluid inlet type | Ball check |
| Fluid outlet | 3/4" NPT (F) |
| Wetted materials | Cast iron, Hard chromed steel, Steel, Polyurethane, NBR |
| Pump tube material | Carbon steel |
| Sound level | 80 dB |

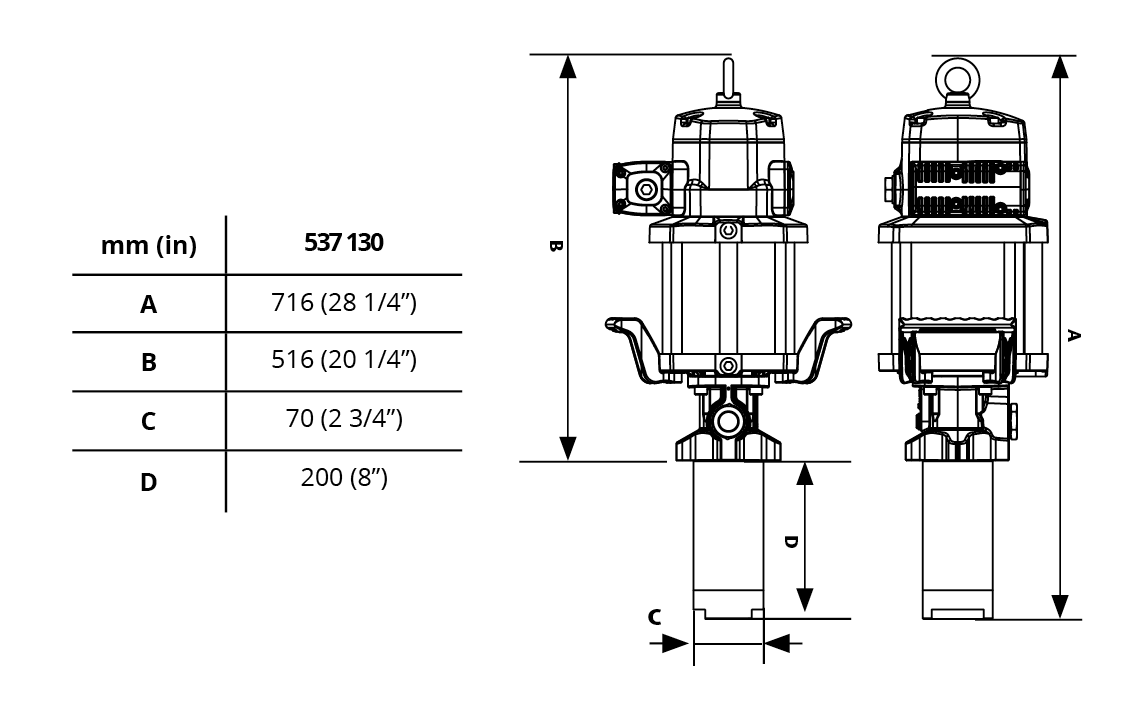

| Tube height | 200 mm (7,9") |
| Total height | 716 mm (28,2") |
| Weight | 19 kg (42 lb) |
Models
| Code | Fluids | Pump mounting | Fluid outlet | Tube height | Total height |
|---|---|---|---|---|---|
| 537131 | Oil | Universal stub pump | 3/4" NPT (F) | 200 mm (7,9") | 716 mm (28,2") |
| 537130 | Oil | Universal stub pump | 3/4" BSP (F) | 200 mm (7,9") | 716 mm (28,2") |
