SAMOA Industrial
Ref.: 426244

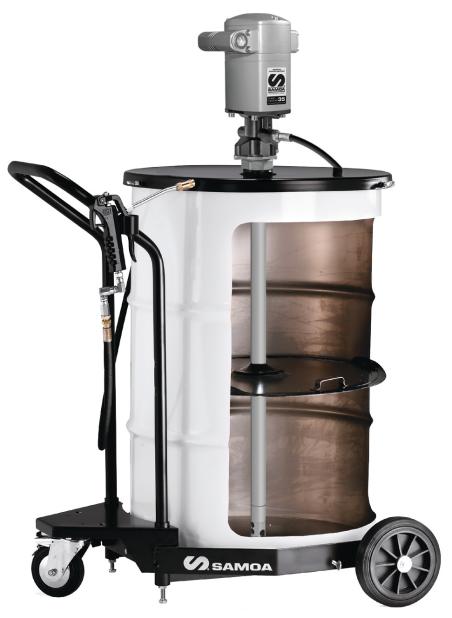

PUMPMASTER 35 - 60:1 RATIO GREASE PNEUMATIC PUMP, 185 KG DRUM MOBILE PACKAGE
Ref.: 426244
PUMPMASTER 35 - 60:1 RATIO GREASE PNEUMATIC PUMP, 185 KG DRUM MOBILE PACKAGE
Includes PM35 - 60:1 ratio pump for 185 kg drums 530 610 with drum cover for 185 Kg drum 418 006, follower plate for 185 kg drums 417 004, grease gun with Z-swivel 413 080, 4 m x 3/8" delivery hose 412 394 and drum trolley 432 000 Instruction book: 842840.
Technical data
Documentation
More information
| Compatible fluids | Grease |
| Type | Mobile Pump Packages |
| Pump type | Pneumatic Piston Pumps |
| Components | 530610, 418006, 417004, 413080, 412394, 432000 |
Kit components
| Code | Product |
|---|---|
| 412394 | GREASE HOSE, 4 M x 3/8" - 1/4" |
| 413080 | CONTROL VALVE, PG-77/Z SERIES, 1 KG/MIN, GREASE, RIGID OUTLET, Z-SWIVEL |
| 417004 | STANDARD DUTY FOLLOWER PLATE, 185 KG DRUM, 550 - 590 MM |
| 418006 | STANDARD DUTY DRUM COVER, 185 KG DRUM, 565 - 610 MM |
| 432000 | DRUM TROLLEY, 185 KG DRUMS |
| 530610 | PNEUMATIC PISTON GREASE PUMP, PUMPMASTER 35, PM35 - 60:1, 185 KG (400LB) DRUMS |
Models
| Code | Description | Components |
|---|---|---|
| 426244 | Pump on 185 kg drum mobile package | 530610, 418006, 417004, 413080, 412394, 432000 |
| 486510 | Pump on 50 kg drum mobile package | 530620, 480050, 412393, 413080 |
| 423160 | Pump on 50 kg drum mobile package with cover | 530620, 418016, 413080, 412393, 431000 |
| 423021 | Pump on 18 kg pails portable package | 530630, 418002, 412393, 413080, 741602 |
| 534620 | Pump on 50 kg drum kit | 530620, 418004, 417002, 534600 |
| 534611 | Pump on 185 kg drum with pneumatic pump hoist and gravity inductor package | 530620, 391020, 534612 |
| 534610 | Pump on 185 kg drum kit | 530610, 418006, 417004, 534600 |
| 453612 | Pump on 185 kg drum stationary package with hose reel and grease gun | 530610, 418006, 417004, 534600, 413080, 504351 |
| 424063 | Pump on 12-20 kg pails mobile extrusion package | 530630, 391010, 742215 |
| 424062 | Pump on 12-20 kg pails mobile extrusion package with grease gun | 530630, 391010, 412393, 413080, 742215 |
| 486210 | Pump on 20 kg pails mobile package | 530630, 480021, 412393, 413080 |
