Ref.: 506311
SINGLE ARM ALUMINIUM HOSE REEL, RM-12S SERIES, 15+3 M, 3/8", GREASE / HYDRAULIC OIL
Ref.: 506311
SINGLE ARM ALUMINIUM HOSE REEL, RM-12S SERIES, 15+3 M, 3/8", GREASE / HYDRAULIC OIL
Aluminium base and arms with composite spool hose reels, can handle up to 15 m x 1/2" hose. Aluminium base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.

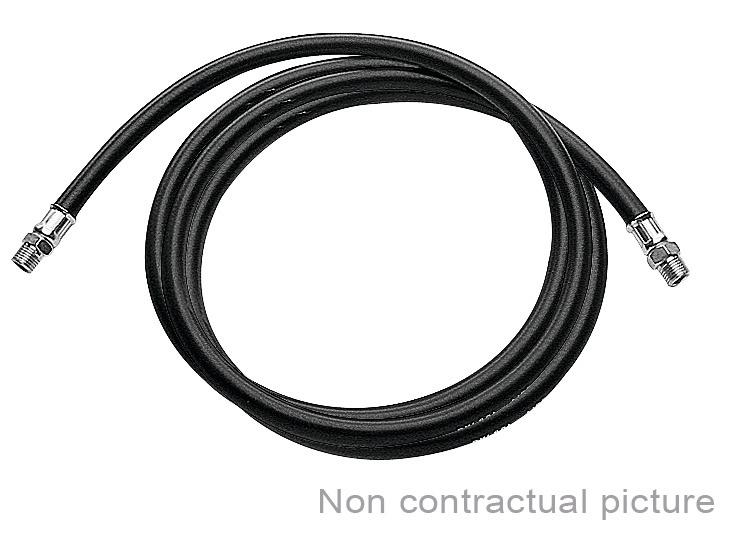

Full port shaft and swivel for no restrictions. Spool mounted on two permanent lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life. Large effective radial latching area for easier operation. Six roller guide outlet prevents hose pinching and reduces friction. Hose guide arm can be placed in different positions to accommodate any method of mounting. Hose reels with hose include 0,8 m inlet hose.
Model with 15+3 m (3 m hanging from reel) 3/8" hose for GREASE / HYDRAULIC. Instruction books: 850812 and 836823.
Technical data
Documentation
More information
| Compatible fluids | Grease, Oil |
| Hose in diameter | 3/8" |
| Hose length | 18 m (59,06 ft) |
| Fluid Inlet | 3/8" BSP (M) |
| Fluid outlet | 1/4" BSP (M) |
| Working Pressure | 160 bar (2320 psi) |
| Installation options | Floor, Wall, Ceiling, Tank |
| Bare reel part number | 506935 |
| Weight | 17 kg (37,5 lb) |
General
Instruction manuals
Category documents 04
Category documents 05
Category documents 06
Models
| Code | Compatible fluids | Hose in diameter | Hose length | Working Pressure |
|---|---|---|---|---|
| 506311 | Grease, Oil | 3/8" | 18 m (59,06 ft) | 160 bar (2320 psi) |
| 506782 | Windscreen washer, AdBlue/DEF | 1/2" | 15 m (49,21 ft) | 20 bar (290,08 psi) |
| 506762 | Windscreen washer, AdBlue/DEF | 1/2" | 10 m (32,81 ft) | 20 bar (290,08 psi) |
| 506503 | Waste oil | 5/8" | 6 m (19,69 ft) | -0,9 bar (-13,05 psi) |
| 506421 | Water | 3/8" | 15 m (49,21 ft) | 170 bar (2470 psi) |
| 506321 | Grease, Oil | 3/8" | 15 m (49,21 ft) | 280 bar (4060 psi) |
| 506301 | Grease, Oil | 3/8" | 10 m (32,81 ft) | 280 bar (4060 psi) |
| 506300 | Grease, Oil | 1/4" | 10 m (32,81 ft) | 350 bar (5075 psi) |
| 506222 | Oil | 1/2" | 15 m (49,21 ft) | 160 bar (2320 psi) |
| 506202 | Oil | 1/2" | 10 m (32,81 ft) | 160 bar (2320 psi) |
| 506122 | Air, Water, Coolant | 1/2" | 15 m (49,21 ft) | 15 bar (220 psi) |
| 506121 | Air, Water, Coolant | 3/8" | 15 m (49,21 ft) | 15 bar (220 psi) |
| 506101 | Air, Water, Coolant | 3/8" | 10 m (32,81 ft) | 15 bar (220 psi) |
| 506212 | Oil | 1/2" | 18 m (59,06 ft) | 160 bar (2320 psi) |
