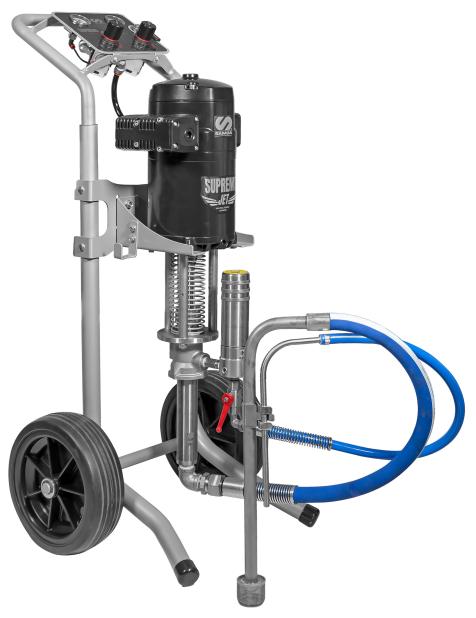

SS SUPREME-JET 33:1 AIR-CONTROLLED AIRLESS ON TROLLY + LINE FILTER + SUCTION HOSE
Ref.: S33NIC0
SS SUPREME-JET 33:1 AIR-CONTROLLED AIRLESS ON TROLLY + LINE FILTER + SUCTION HOSE
The sophisticated design, with various configurations, guarantees
exceptional finishes even in extremely demanding applications. Our air
motors have been in operation for many years, giving us recognition for
their outstanding performance.
Technical data
Documentation
More information
| Application | Industrial Processes |
| Pump type | Pneumatic Piston Pumps |
| Package Version | Spraying kit not included |
| Pump tube material | Stainless steel |
| Pressure ratio | 33:1 |
| Delivery | 3,8 l/min (1,1 gal/min) (60 cycles) |
| Delivery per cycle | 0,06 l/cycle |
| Cycles per minute (aprox.) | 60 cycles |
| Air pressure operating range | 2-7 bar (29-101,5 psi) |
| Maximum outlet pressure | 231 bar (3349,5 psi) |
| Air motor effective diameter | 115 mm (4,5") |
| Air motor stroke | 103 mm (4") |
| Air inlet | 3/8" NPSM (F) |
| Fluid Inlet | 3/4" NPT |
| Fluid outlet | 3/8" NPT |
| Pump Mounting | Trolley |
| Wetted materials | Stainless Steel (AISI 316), stainless-steel-aisi-630, stainless-steel-aisi-303, stainless-steel-aisi-304, PTFE, Polyethylene, tungsten-carbide, |
| Weight | 20 kg (44,1 lb) |
