SAMOA Industrial
Ref.: LAK98135

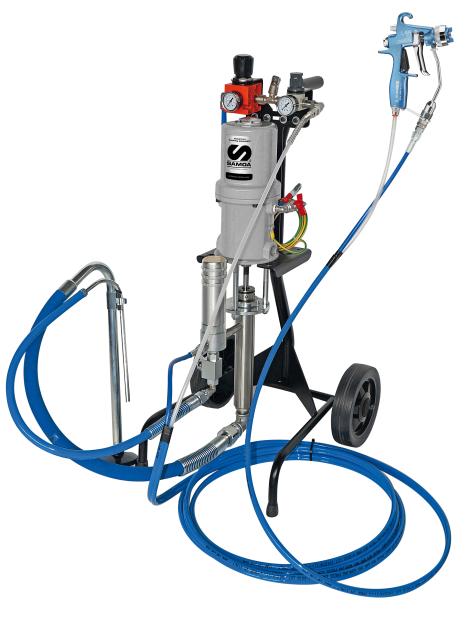

STAINLESS STEEL VEGA 34:1 AIR CONTROLLED AIRLESS ON Trolley WITH LINEFILTER, SUCTION HOSE AND SPRAYING KIT (HOSE: 7,5 m Ø 3/16"1/4" BSPP - QUICK CONNECTION 8X6, GUN: L400, TIP: AIR CONTROLLEDAIRLESS 11-40/13-40)
Ref.: LAK98135
STAINLESS STEEL VEGA 34:1 AIR CONTROLLED AIRLESS ON Trolley WITH LINEFILTER, SUCTION HOSE AND SPRAYING KIT (HOSE: 7,5 m Ø 3/16"1/4" BSPP - QUICK CONNECTION 8X6, GUN: L400, TIP: AIR CONTROLLEDAIRLESS 11-40/13-40)
The Vega 34:1 is a pneumatic air-assisted airless piston pump engineered for durability and precise performance. Built with high-grade materials, it ensures fine atomization for professional spray finishes on wood or metal surfaces in industrial environments.
Technical data
Documentation
More information
| Application | Finishing |
| Pump type | Pneumatic Piston Pumps |
| Package Version | Spraying kit included |
| Pump tube material | Stainless steel |
| Pressure ratio | 34:1 |
| Delivery | 1,3 l/min (0,4 gal/min) (60 cycles) |
| Delivery per cycle | 0,02 l/cycle |
| Cycles per minute (aprox.) | 60 cycles |
| Air pressure operating range | 3-7 bar (43,5-101,5 psi) |
| Maximum outlet pressure | 240 bar (3480 psi) |
| Air motor effective diameter | 76 mm (3") |
| Air motor stroke | 76 mm (3") |
| Air inlet | 3/8" BSPP (F) |
| Fluid Inlet | M36X2 (M) |
| Fluid outlet | 1/4" BSPP (M) |
| Pump Mounting | Trolley |
| Wetted materials | Carbon steel, Stainless steel, PTFE, Polyethylene, tungsten-carbide, Aluminium |
| Sound level | 80 |
| Weight | 24 kg (53 lb) |
