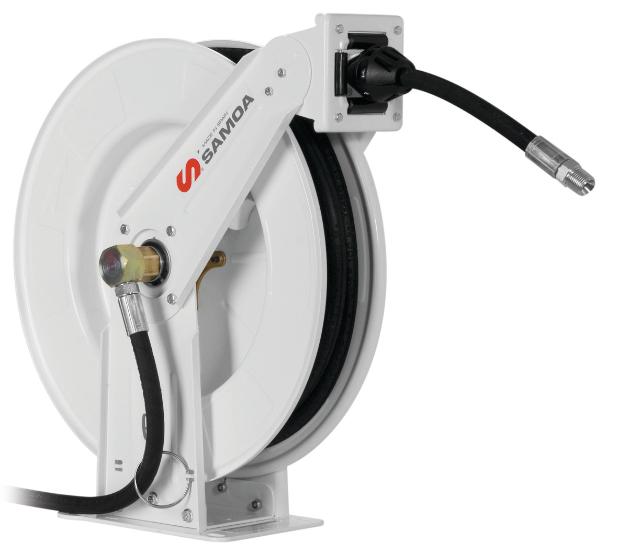

DOUBLE PEDESTAL DOUBLE ARM HOSE REEL, RM-12 SERIES, 10 M, 1/2",LUBRICANT OIL
DOUBLE PEDESTAL DOUBLE ARM HOSE REEL, RM-12 SERIES, 10 M, 1/2",LUBRICANT OIL

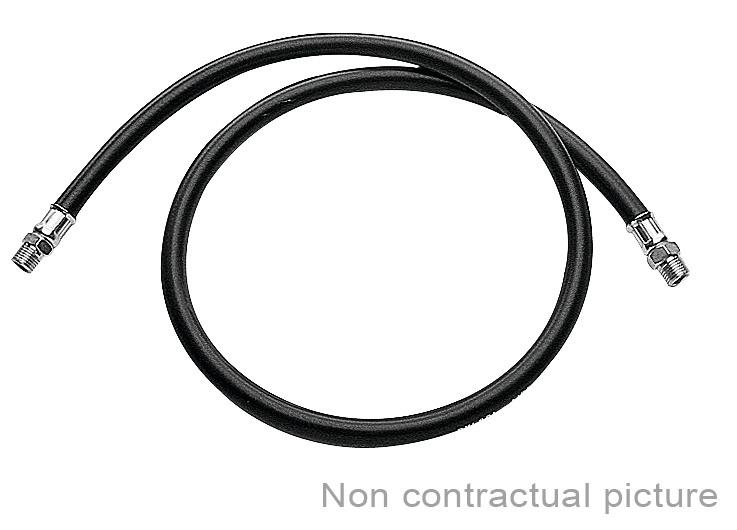

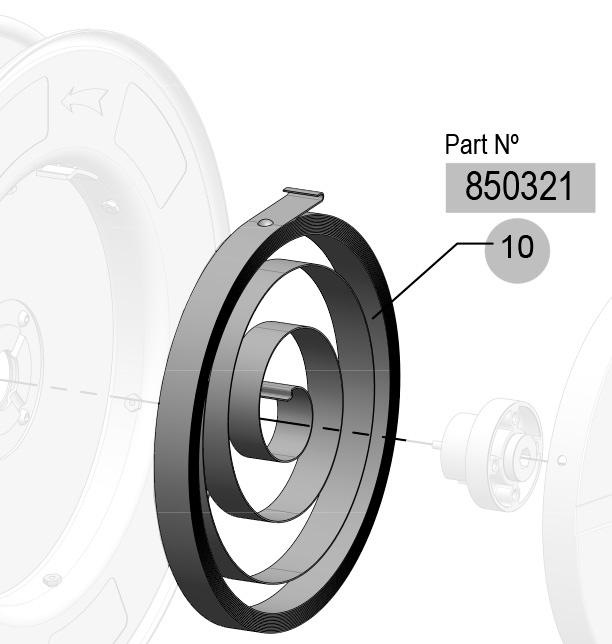

Full metal hose reels, can handle up to 10 m x 1/2" hose. Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose. Full metal double pedestal arm construction, epoxy powder coated for increased wear resistance. Forged brass shaft ensures a leak free operation. Hose reels with hose include 0,8 m inlet hose. Model with 10 m 1/2" hose for LUBRICANT OIL. Instruction books: 850801 and 836823.
| Compatible fluids | Oil |
| Hose in diameter | 1/2" |
| Hose length | 10 m (32,81 ft) |
| Fluid Inlet | 1/2" BSP (M) |
| Fluid outlet | 1/2" BSP (M) |
| Working Pressure | 160 bar (2320 psi) |
| Installation options | Floor, Wall, Ceiling, Tank |
| Bare reel part number | 501298 |
| Weight | 20 kg (44 lb) |
