PNEUMATIC PISTON INK PUMP, PUMPMASTER 100, PM100 - 22:1
PNEUMATIC PISTON INK PUMP, PUMPMASTER 100, PM100 - 22:1

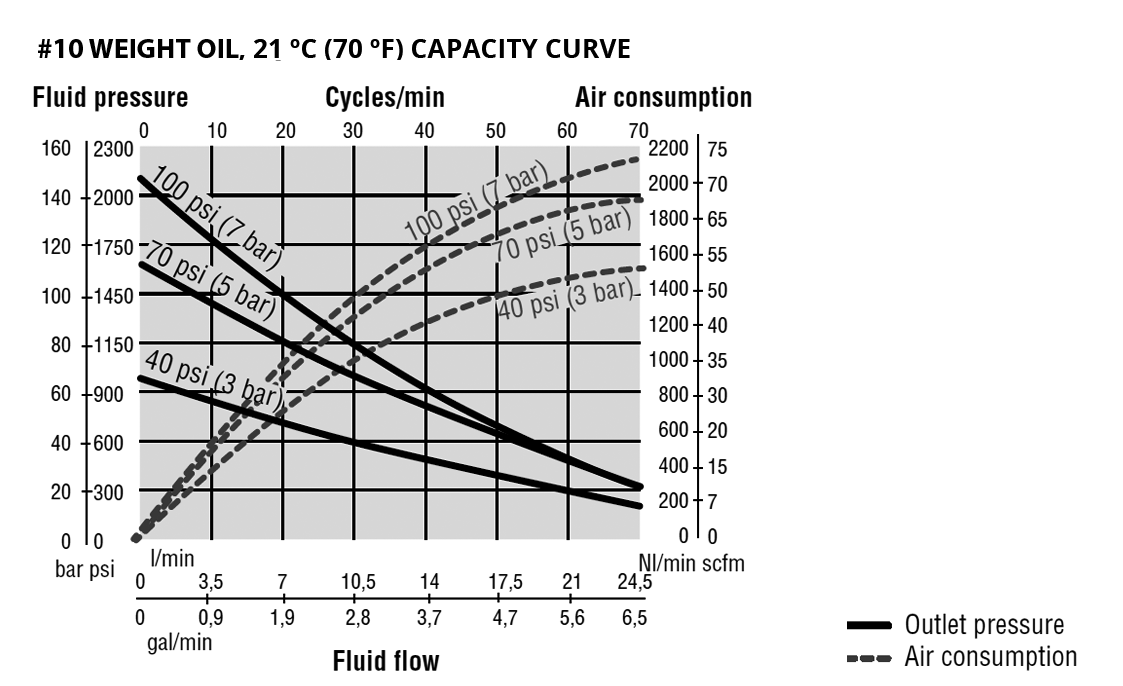

PM100 series air operated piston pumps. The Dominator PM100 series range features a 10" air-motor. This reliable and powerful pump is ideal for centralized, static bulk tank, ink pump stations that supply multiple, high speed, newspaper and commercial press installations. Flow rates with ink at 7 bar (100 psi) air inlet pressure. SAMOA recommends pumps to work at 20 cycles/min for reduced wear on moving parts and minimized maintenance. Instruction book: 854815.
| Fluids | Other fluids |
| Target product type | Shovel Intake Piston Pumps |
| Model | PM100 |
| Application | Industrial Processes |
| Pressure ratio | 22:1 |
| Delivery | 8 kg/min (17,6 lb/min) |
| Delivery per cycle | 0,442 l (0,117 gal) |
| Cycles per minute (aprox.) | 2.2 cycles |
| Maximum free flow delivery | 25 kg/min (55,1 lb/min) |
| Air pressure operating range | 1,5-7 bar (21,75-101,5 psi) |
| Air consumption | 1500 NL/min (52,9 scfm) |
| Maximum outlet pressure | 154 bar (2235 psi) |
| Air motor effective diameter | 250 mm (10 ") |
| Air motor stroke | 100 mm (4 ") |
| Air inlet | 1/2" BSP (F) / 1/2" NPT (F) |
| Fluid Inlet | 4" |
| Fluid inlet type | Chop-check |
| Fluid outlet | 1 1/2" BSP (F) / 1 1/2" NPT (F) |
| Wetted materials | Acetal, Viton, Carbon steel, Cast iron, Bronze, UHMWPE |
| Pump tube material | Carbon steel |

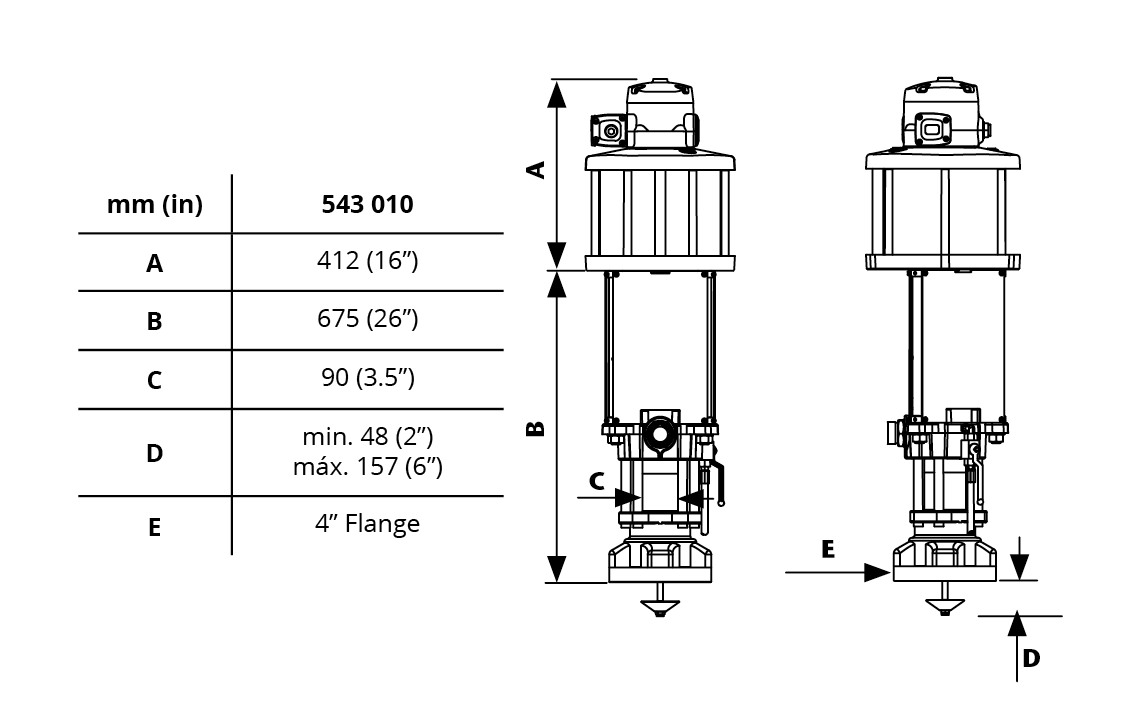

| Tube height | 538 mm (21 ") |
| Pump Mounting | 205 l (55 gal) drum bung mounted |
| Total height | 1253 mm (49,3 ") |
| Sound level | 80 dB |
| Weight | 95 kg (209 lb) |
