PNEUMATIC PISTON INK PUMP, PUMPMASTER 60, PM60 - 12:1
PNEUMATIC PISTON INK PUMP, PUMPMASTER 60, PM60 - 12:1

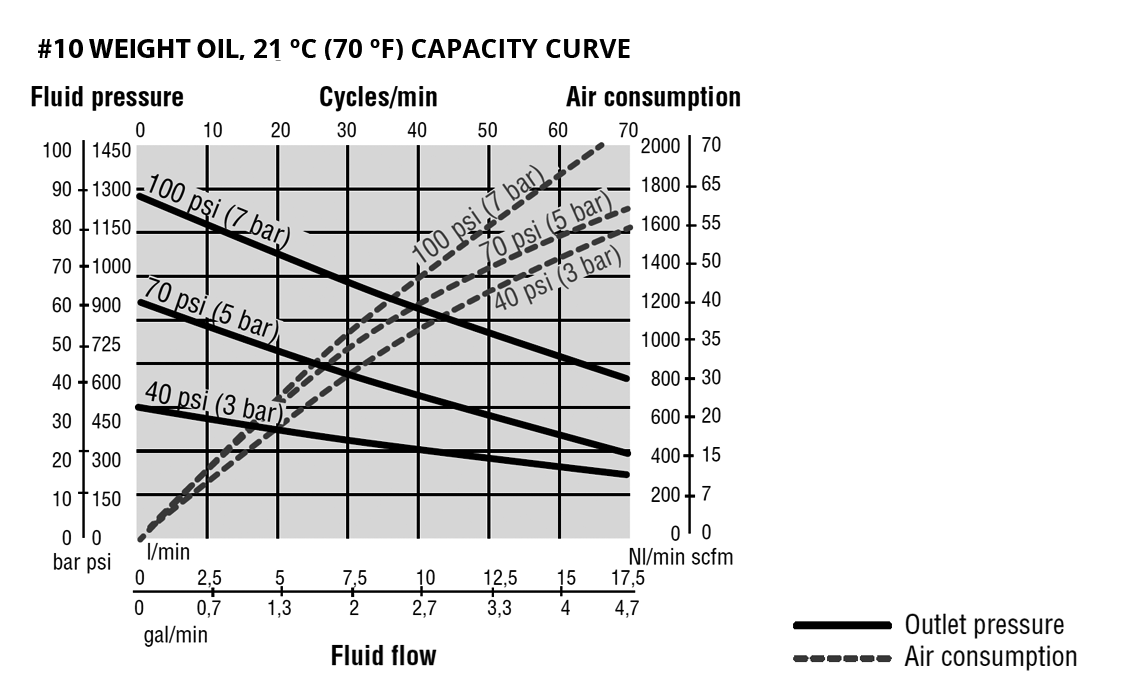

PM60 series air operated piston pumps. The Dreadnought PM60 series range features 6" diameter air-motor pumps designed to transfer offset inks. Ideal for distribution and mixing systems particularly when ink is pumped from standard drums or stationary containers. Flow rates with ink at 7 bar (100 psi) air inlet pressure. SAMOA recommends pumps to work at 30 cycles/min for reduced wear on moving parts and minimized maintenance. Instruction book: 854810.
| Fluids | Other fluids |
| Target product type | Shovel Intake Piston Pumps |
| Model | PM45 |
| Application | Industrial Processes |
| Pressure ratio | 12:1 |
| Delivery | 3,5 kg/min (7,7 lb/min) |
| Delivery per cycle | 0,29 l (0,077 gal) |
| Cycles per minute (aprox.) | 3.4 cycles |
| Maximum free flow delivery | 5,5 kg/min (12,1 lb/min) |
| Air pressure operating range | 1,5-7 bar (20-100 psi) |
| Air consumption | 1400 NL/min (49,4 scfm) |
| Maximum outlet pressure | 84 bar (1220 psi) |
| Air motor effective diameter | 150 mm (6 ") |
| Air motor stroke | 100 mm (4 ") |
| Air inlet | 1/2" BSP (F) / 1/2" NPT (F) |
| Fluid Inlet | 2 1/2" BSP (M) |
| Fluid inlet type | Chop-check |
| Fluid outlet | 1" BSP (F) / 1" NPT (F) |
| Wetted materials | Acetal, Viton, Carbon steel, Cast iron, Bronze, UHMWPE |
| Pump tube material | Carbon steel |

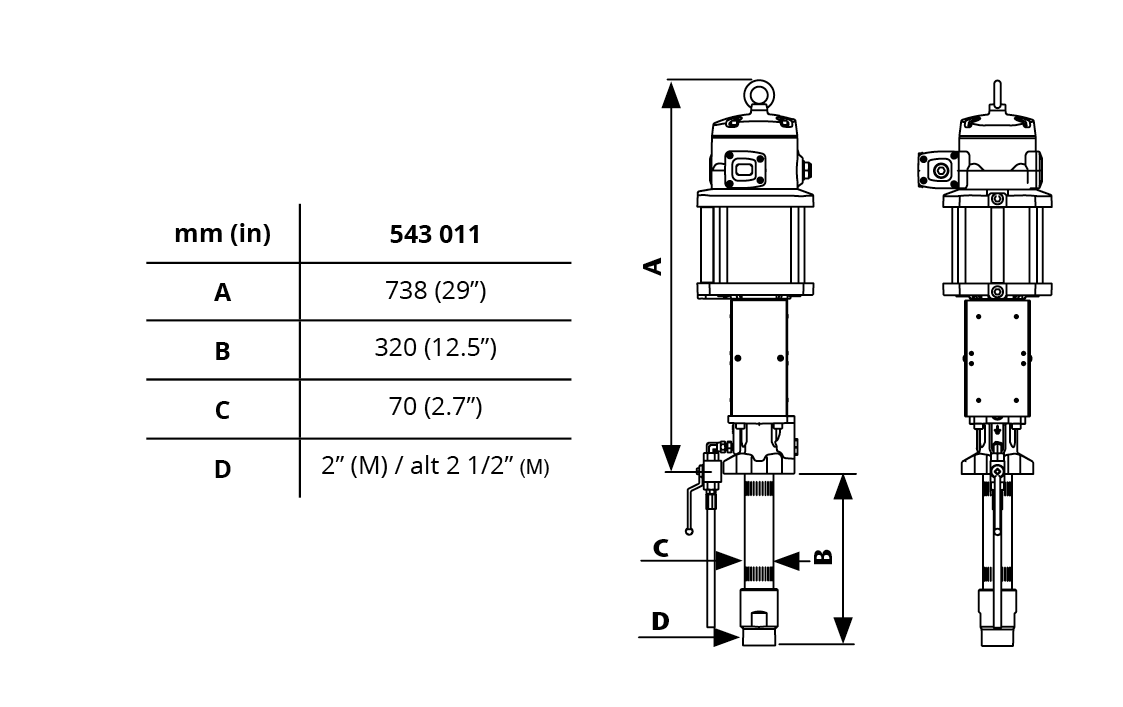

| Tube height | 320 mm (12,6 ") |
| Pump Mounting | 205 l (55 gal) drum bung mounted |
| Total height | 1058 mm (41,6 ") |
| Sound level | 80 dB |
| Weight | 27 kg (59,5 lb) |
